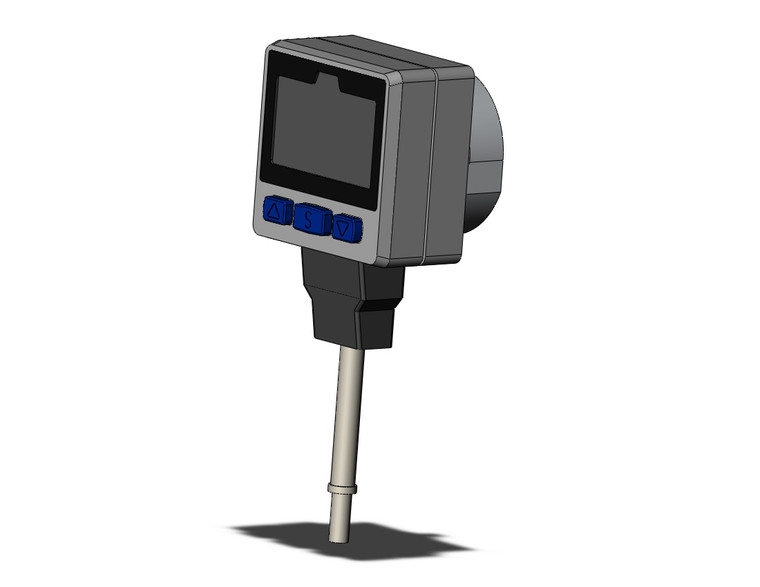

SMC ISE35-N-65-PLA Digital Pressure Switch, Built-In Regulator Type, PNP
SMC
$101.30
The SMC ISE35-N-65-PLA is a digital pressure switch of the built-in regulator (modular) type from the SMC ISE35 series. It mounts directly onto SMC regulators and FRL combinations to give a digital readout and PNP switch output of the regulated pressure, with bottom wiring entry and a lead wire with connector.
Key Specifications
| Series | SMC ISE35 digital pressure switch, built-in regulator (modular) type |
| Compatible regulators | AC-D, AR-D, AR M(K)-D, AW-D, AWM/AWD-D, ARM, ARP series |
| Applicable fluid | Air |
| Switch output | PNP output |
| Electrical entry | Bottom entry |
| Analog output | Voltage / current compatible |
| Communication | IO-Link compatible |
| Mounting | Modular type mounting kit |
Features
- Integrates directly into SMC regulators and FRL units as a modular digital pressure switch
- PNP switch output plus analog output and IO-Link communication
- Selectable pressure unit, anti-chattering, and power-saving functions
- Replaces analog gauges with a repeatable digital reading
Applications
Used to add a digital pressure display, switch output, and IO-Link data to SMC AR, AW, and AC regulators and FRL stations.
Automation Distribution is an authorized SMC distributor. Order the SMC ISE35-N-65-PLA online, or contact our technical team for help confirming pressure range, port, and output for your application.
- Electrical Entry:
- Wiring Bottom Entry
- Output Specification:
- PNP Output
- Remote Sensor Unit:
- Pressure Unit: psi(Initial Value),With Unit Conversion Function
- Option 1:
- Lead Wire With Connector
- Option 2:
- Modular Type Mounting Kit
- Semi-standard Specifications:
- None
