Description

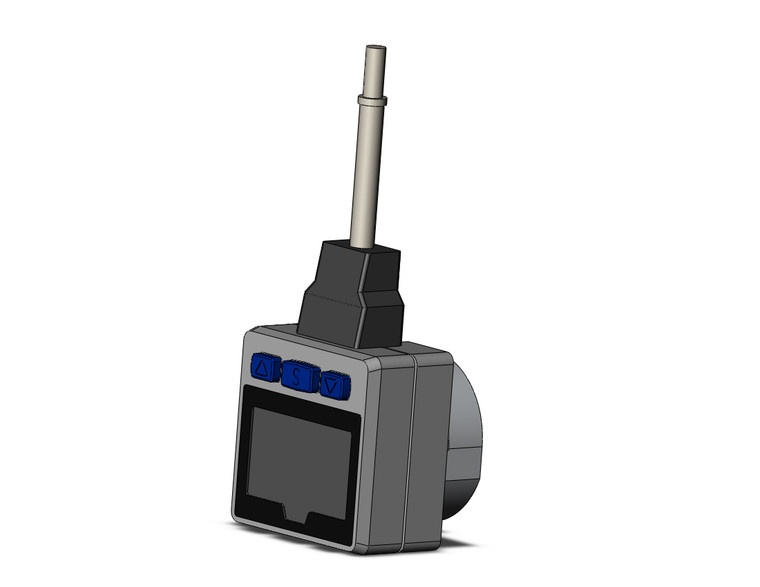

ISE35, Digital Pressure Sensor for FRLs, 1 Screen 1 Output, IP40
ISE35 is a digital pressure sensor that integrates with multiple regulators and FRL combinations from SMC, including series AC, AR, ARM, ARP and AW. The ISE35 mounts into a ported interface on any compatible series using an included mounting kit. A detachable 3-wire cable includes power and switch output leads. Instantaneous readings are shown on the 3 digit, 2 color display. The color can be set to red or green, or shifted from one to the other to alert when reaching a set point. An indicator for the switch output is also visible. Additional functions enhance security, power saving, and response time.
- Verify regulator settings with digital gauge in dry environments- Pressure range: 0-1 MPa
- 4 pressure units: MPa, kgf/cm2, bar, psi
- Switch output: Hysteresis or window comparator (NPN or PNP)
- Display accuracy: 2% F.S.
- Repeatability: 1% F.S.
-
