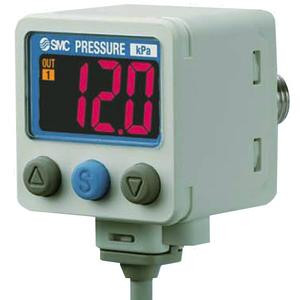

SMC ISE40A-01-Y Digital Pressure Switch, 2-Color, IP65 (see ISE20B)
SMCThe SMC ISE40A-01-Y is a 2-color display high-precision digital pressure switch from the SMC ISE40A series, for positive pressure of air and non-corrosive, non-flammable gas, with a Rc 1/8 port and a PNP open collector output.
Product status: SMC discontinued the ISE40A series in June 2019. The current replacement is the SMC ISE20B series 3-screen high-precision digital pressure switch, which adds IO-Link communication. Contact our team for help selecting the equivalent ISE20B configuration for a new design.
Key Specifications
| Series | SMC ISE40A 2-color display high-precision digital pressure switch (discontinued) |
| Replacement series | SMC ISE20B |
| Applicable fluid | Air, non-corrosive gas, non-flammable gas |
| Rated pressure range | -0.1 to 1 MPa |
| Port | Rc 1/8 |
| Switch output | PNP open collector, 2 outputs (with copy function) |
| Power supply | 12 to 24 VDC |
| Display | 2-color (red/green) LCD |
| Repeatability | +/-0.5% F.S. or less |
| Enclosure rating | IP65 |
Features
- 2-color display shows in-range and out-of-range at a glance
- Copy function transfers settings to up to 10 switches to cut setup time
- Selectable hysteresis or window comparator switching modes
- For new designs, the ISE20B replacement adds IO-Link communication
Applications
Used to monitor and switch on air and gas pressure in clamping, blow-off, and general pneumatic circuits. For new equipment, specify the SMC ISE20B replacement series.
Automation Distribution is an authorized SMC distributor. Order the SMC ISE40A-01-Y online, or contact our technical team for help confirming pressure range, port, and output for your application.
- Piping:
- R1/8 w/M5 Female Thread
- Output Specification:
- PNP Open Collector 2 Outputs+Copy Function
- Unit Specification:
- Not Allowed for Use in Japan
- Lead Wire:
- 2m
