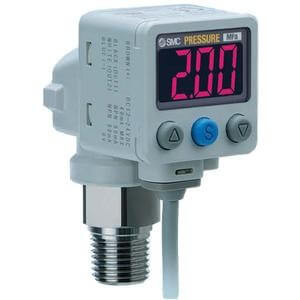

SMC ISE80-A2-T

SMC ISE80-A2-T

SMC
SKU:
ISE80-A2-T
Availability:
Contact us to confirm availability and lead times.
$240.00
Condition:
New
Current Stock:
Description

the ise80 series is a digital pressure switch designed to measure fluids such as tap water, hydraulic fluid, silicon oil, lubricant, fluorocarbon, argon, ammonia, carbon dioxide, air-containing drainage and nitrogen.? some of the features include 2-color indication, select from back piping and bottom piping, the addition of 2mpa and -101kpa types, also low leakage type, water hammer protection, easy operation, and standardization of ce, ul/csa and rohs compliance.?

  • 4 indicator patterns of color combinations?
  • choice of 2 piping directions rear and bottom ported
  • panel or bracket mounting
  • resolution and mpa/kpa switching function
  • analog current output

Additional Information
Rated Pressure Range:
80 (-0.1 to 1 MPa)
Piping:
A2 (URJ1/4, Rear Ported)
Input/Output:
T (PNP Open Collector 2 Outputs, Analog Voltage Output, Auto-Shift)
Option 1:
w/Unit Display Switching Function
Option 2:
None
Option 3:
Operating Manual Booklet
X Options:
None
