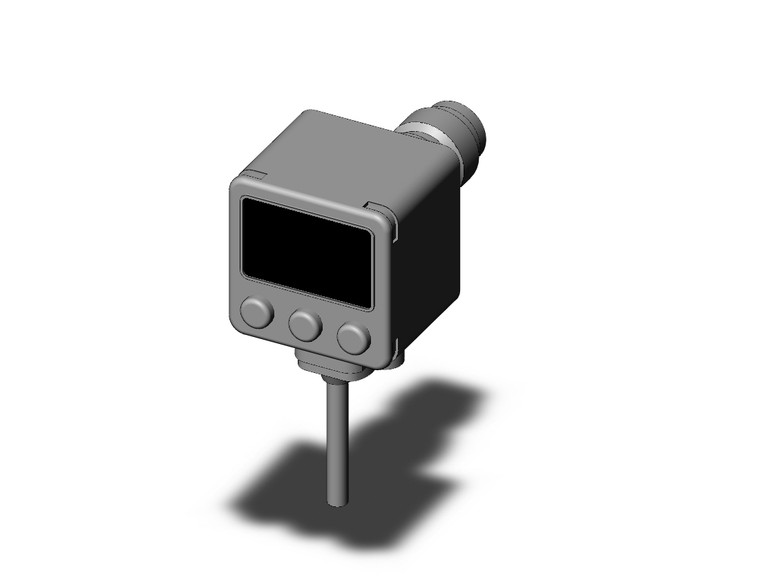

SMC ISE80H-A2-V ISE80 Series 2-Color Display Digital Pressure Switch For General Fluids For Positive Pressure
SMC
$255.00
The SMC ISE80H-A2-V ISE80 Series 2-Color Display Digital Pressure Switch is designed for monitoring positive pressure in a wide range of general fluids. Featuring a durable stainless diaphragm, this pressure switch ensures compatibility with various fluid types. It boasts an IP65 rating, providing excellent protection against dust and water ingress, making it suitable for challenging environments. The device is RoHS compliant, ensuring it meets environmental and safety standards. With low leakage performance, it offers reliable operation and can be equipped with VCR or Swagelok compatible fittings for versatile installation options. The switch also provides flexibility in installation with options for back or underside piping, making it a versatile choice for various applications.
- Rated Pressure Range:
- 0.1 To 2 MPa
- Porting Specifications:
- URJ1/4
- Piping Direction:
- Rear Ported
- Output Specification:
- PNP Open Collector 2 Outputs + Analog Current Output/Auto-Shift Switching
- Remote Sensor Unit:
- With Display Unit Switching Function
- Option 1:
- None
- Option 2:
- Operation Manual:-
- Made To Order:
- Standard
