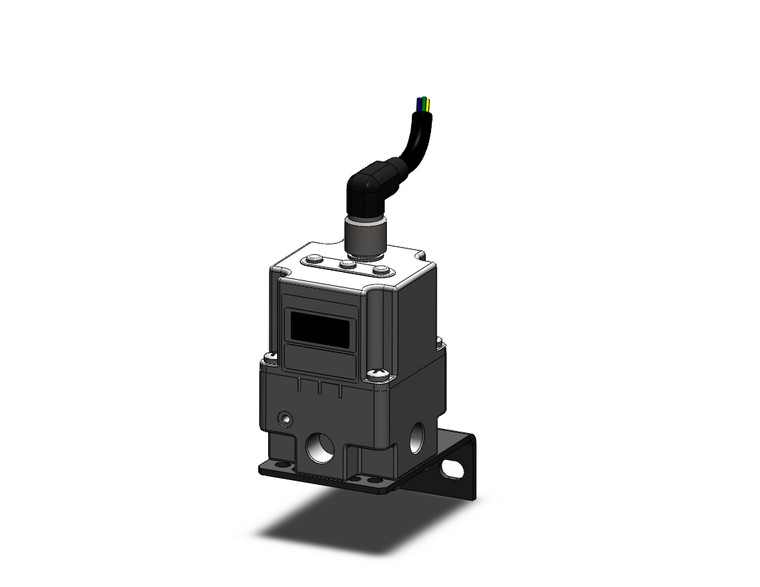

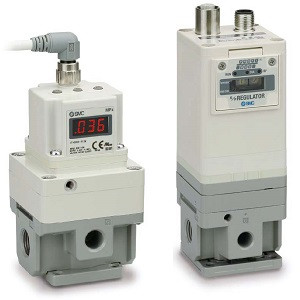

SMC ITV1010-04N1CL4 ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$325.15
The SMC ITV1010-04N1CL4 is part of the ITV1000/2000/3000 Series Electro-pneumatic Regulators, designed for precise control of air pressure in response to electric signals. This advanced regulator offers stepless control, ensuring smooth and accurate pressure adjustments. With a sensitivity of 0.2 kPa (100 kPa specification), it provides exceptional precision. The regulator maintains a linearity of ±1% or less (F.S.) and a hysteresis of 0.5% or less (F.S.), ensuring reliable performance. It supports various communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C, making it versatile for integration into different systems. Ideal for applications requiring precise pressure control, this regulator is a reliable choice for enhancing system efficiency and performance.
- Type:
- 1000 type
- Pressure Range:
- 0.1 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Analog Output 4 To 20 mA DC (Sink Type)
- Thread Type:
- NPT
- Port Size:
- 1/8
- Bracket:
- L-Bracket
- Cable connector:
- Right angle type 3 m
- Pressure display unit:
- psi
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
