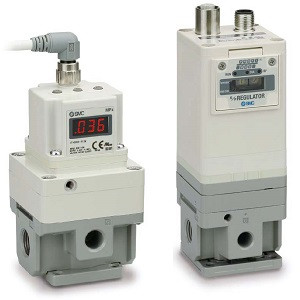

SMC ITV1050-31F1CN3 ITV1000/2000/3000 Series Electro-pneumatic Regulator

SMC ITV1050-31F1CN3 ITV1000/2000/3000 Series Electro-pneumatic Regulator

SMC
SKU:
ITV1050-31F1CN3
Availability:
Factory stock: 7
$278.00
Condition:
New
Current Stock:
Description

The SMC ITV1050-31F1CN3 is a compact ITV1000-series electro-pneumatic (E/P) regulator that converts a 0–10 VDC command signal into a proportional output pressure across a 0.005–0.9 MPa (approx. 0.7–130 psi) range. A built-in pressure sensor and closed-loop control circuit continuously correct the output to match the input signal, giving stepless, repeatable pressure control from a PLC or analog controller. This variant ships with a 1/8" G (PF) port, analog 1–5 VDC monitor output, integrated LED display, and an L-bracket, rated IP65.

Part number breakdown — confirm you're ordering the exact configuration

ITV10 ITV1000 compact body
5 Pressure range 0.005–0.9 MPa
0 24 VDC power supply
3 Input signal 0–10 VDC (voltage type)
1 Monitor output, analog 1–5 VDC
F G (PF) thread type
1 1/8" port size
C L-bracket
N Without cable connector (order separately)
3 Pressure display unit: bar

Key Features

  • Proportional, closed-loop control — output pressure tracks the 0–10 VDC input; a pressure sensor and correction circuit hold the setpoint automatically.
  • High accuracy — linearity within ±1% F.S., hysteresis ≤0.5% F.S., repeatability ±0.5% F.S., sensitivity ≤0.2% F.S.
  • Low air consumption — near-zero bleed when balanced, reducing compressed-air cost versus mechanical proportional valves.
  • Analog 1–5 VDC monitor output — feed actual output pressure back to a PLC or datalogger for verification and diagnostics.
  • Integrated digital display & keypad — on-unit LED readout (bar) and setup without external tools.
  • IP65 enclosure with fluoro-rubber seals for use in typical industrial and machine-builder environments.
  • Compact and light — approx. 250 g body; L-bracket included for panel or frame mounting.

Specifications

SMC ITV1050-31F1CN3
Type Electro-pneumatic (E/P) proportional regulator
Series ITV1000
Set pressure range 0.005–0.9 MPa (approx. 0.7–130 psi)
Input signal 0–10 VDC (voltage type)
Monitor output Analog 1–5 VDC
Power supply 24 VDC ±10%, 0.12 A or less
Port size / thread 1/8" · G (PF) parallel
Minimum supply pressure Set pressure + 0.1 MPa
Maximum supply pressure 1.0 MPa
Linearity / hysteresis ±1% F.S. / ≤0.5% F.S.
Repeatability / sensitivity ±0.5% F.S. / ≤0.2% F.S.
Temperature characteristics ±0.12% F.S./°C
Ambient / fluid temperature 0–50°C (no condensation)
Display Integrated digital LED, unit in bar
Bracket L-bracket (included)
Cable connector Not included — order straight or right-angle connector separately
Enclosure IP65
Weight Approx. 250 g (without options)

Specifications per SMC's published data and are subject to change by the manufacturer. Confirm critical values against the current SMC datasheet before design-in.

Typical Applications

The ITV1050-31F1CN3 suits any process that needs pressure or force set electronically and held automatically:

  • Web and film tension control on winders and unwinders
  • Clamping and blank-holder force control on presses and fixtures
  • Air balancers and load-balancing systems
  • Leak-test and function-test benches requiring setpoint ramping
  • Paint, adhesive, and coating fluid-pressure regulation
  • Roller nip / laminating pressure control
  • Robot end-effector and gripper force control

Frequently Asked Questions

What input signal does the ITV1050-31F1CN3 use?

A 0–10 VDC voltage command. Output pressure is proportional to that signal across the 0.005–0.9 MPa range.

What is the pressure range and display unit?

0.005–0.9 MPa (approx. 0.7–130 psi), shown on the integrated LED display in bar for this configuration.

Does it include a cable connector?

No. The “N” suffix means it ships without a cable connector — add a straight or right-angle connector to your order.

What port size and thread does it have?

1/8" port with G (PF) parallel thread. An L-bracket is included for mounting.

Is there a feedback output for monitoring?

Yes — an analog 1–5 VDC monitor output reports actual output pressure back to a PLC or datalogger.

Order the SMC ITV1050-31F1CN3 from Automation Distribution

Work with automation specialists who help you confirm the exact ITV configuration for your control signal, port, and pressure range — before you buy. Automation Distribution is an authorized SMC distributor.

  • Technical support to verify signal type, port, and options against your application
  • CAD models and datasheets available on request
  • Request a quote or volume/OEM pricing
  • Help sourcing matching cable connectors and accessories
Additional Information
Type:
1000 type
Pressure Range:
0.9 MPa
Power Supply Voltage:
24 VDC
Input Signal:
Voltage Type 0 To 10 VDC
Monitor Output:
Analog Output 1 To 5 VDC
Thread Type:
G
Port Size:
1/8
Bracket:
L-Bracket
Cable connector:
Without Cable Connector
Pressure display unit:
bar
Made To Order:
Standard
CE-compliant:
Standard Type
