Description

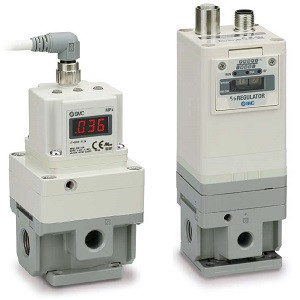

ITV1000/2000/3000, Electro-Pneumatic Regulator
Series ITV electro-pneumatic and electronic vacuum regulators control air/vacuum pressure steplessly in proportion to an electric signal. The units are compact, lightweight, and include an easy to read LED display. Input signals can be analog current or voltage, 4 or 16 point presets, or a range of communication protocols including CC-Link, DeviceNet , PROFIBUS, RS-232C or I/O-Link. EtherNet/IP , and PROFINET are available as well. See the separate configurators on this site. Monitor output is available as an analog or switch signal. ITV regulators are IP65 equivalent.
- Controls air pressure in proportion to an electric signal- Available in MPa, kgf/cm , bar, PSI, and kPa units
- Pressure range of 0.005 to 0.9MPa
- Available port sizes 1/4, 3/8 and 1/2
- Mounting bracket option
- Made to order options available for expanded features, including analog 4-20mA sourcing type, manifold mountable, high speed response, and others
-
Additional Information
Model: |
20 (1500 L/min) |
Pressure Range: |
3 (0.005~0.5MPa) |
Power Voltage: |
0 (24VDC) |
Input Signal: |
0 (Current Style 4~20mADC) |
Monitor Output: |
3 (Switch Output PNP) |
Thread: |
Rc(PT) |
Port Size: |
3 [3/8 (2000,3000)] |
Accessory: |
C (L Bracket) |
Cable Connector: |
L (Right Angle Style 3m) |
Pressure Display Unit: |
4 (PSI) |
