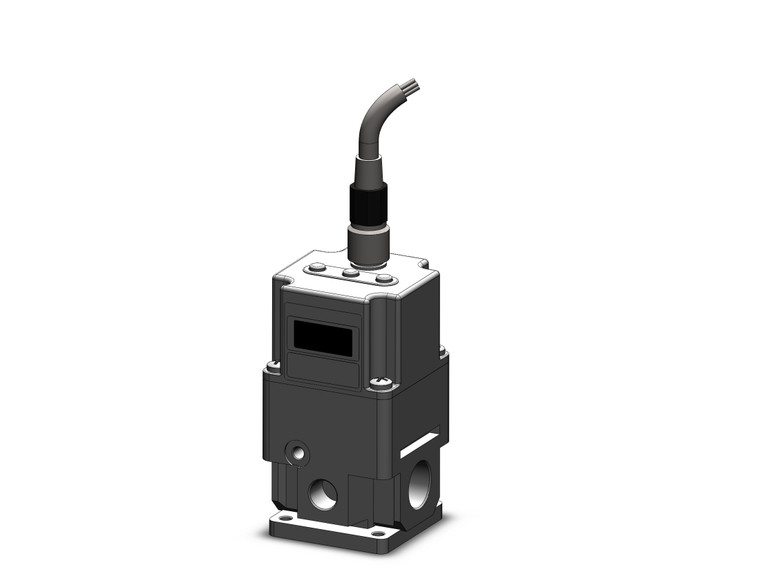

SMC ITV2030-333S ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$379.50
The SMC ITV2030-333S Electro-pneumatic Regulator from the ITV1000/2000/3000 Series offers precise stepless control of air pressure in direct proportion to electric signals. With a sensitivity of 0.2 kPa for the 100 kPa specification, this regulator ensures high accuracy with a linearity of ±1% or less (F.S.) and minimal hysteresis of 0.5% or less (F.S.). It supports various communication protocols including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C, making it versatile for integration into different systems. Ideal for applications requiring reliable and precise air pressure regulation.
- Type:
- 2000 type
- Pressure Range:
- 0.5 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Voltage Type 0 To 10 VDC
- Monitor Output:
- Switch Output/PNP Output
- Thread Type:
- Rc
- Port Size:
- 3/8
- Bracket:
- Without Bracket
- Cable connector:
- Straight Type 3 m
- Pressure display unit:
- MPa
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
