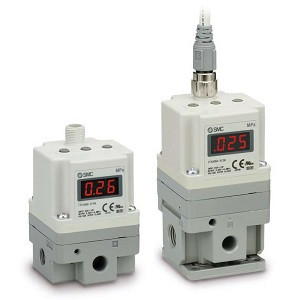

SMC ITV2050-012N4-X26 ITV1000/2000 Series Electro-pneumatic Regulator Manifold Type Single Unit
SMC
$387.15
The SMC ITV2050-012N4-X26 is a high-performance electro-pneumatic regulator designed for precise control of air pressure in manifold type single unit applications. This unit is part of the ITV1000/2000 Series, known for its stepless control capabilities, allowing air pressure to be adjusted in direct proportion to electric signals. With a sensitivity of 0.2 kPa (for the 100 kPa specification), it ensures accurate pressure adjustments. The regulator boasts a linearity of ±1% or less (Full Scale) and a hysteresis of 0.5% or less (Full Scale), ensuring reliable and consistent performance. It supports various communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C, making it versatile for integration into different systems. Ideal for applications requiring precise pneumatic control, this regulator is a robust solution for industrial automation needs.
- Type:
- 2000 type
- Pressure Range:
- 0.9 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Analog Output 1 To 5 VDC
- Port Size:
- 1/4
- Cable connector:
- Without Cable Connector
- Pressure display unit:
- psi
- Made To Order:
- For Manifold
