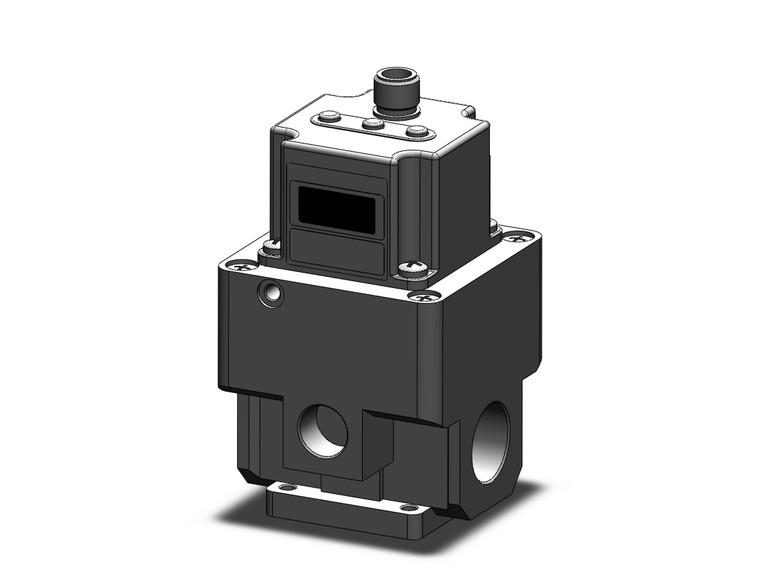

SMC ITV3031-04N4N4 Regulator, Electropneumatic
- SKU:
- ITV3031-04N4N4
- Condition:
- New
- Model:
- 4000 L/min
- Pressure Range:
- 0.005~0.5MPa
- Power Voltage:
- 12~15VDC
- Input Signal:
- Current Style 4~20mADC
- Monitor Output:
- Analog Output 4~20mA, Sink Type
- Thread:
- NPT
- Port Size:
- 3000
- Cable Connector:
- w/oCable Connector
- Pressure Display Unit:
- PSI
Description
series itv electro-pneumatic and electronic vacuum regulators control air/vacuum pressure steplessly in proportion to an electric signal. they are light weight in design with a bright and easy to read led display. the monitor output is available either as analog output or switch output. the itv series is ip65 equivalent.
- controls air pressure in proportion to an electric signal.
- available in mpa, kgf/cm , bar, psi, and kpa units.
- pressure range of 0.005 to 0.9mpa.
- available port sizes 1/4 and 3/8.
- mounting bracket option.
