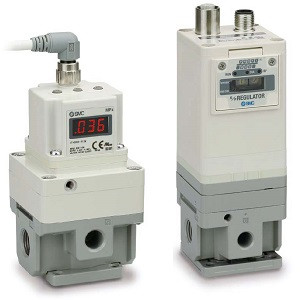

SMC ITV3050-03F4N3 Electro-Pneumatic Regulator, 4000 L/min, 0.005~0.5 MPa, 24VDC, 4~20mA Input, Switch Output PNP, 1/2" Port Size
SMC
$384.25
The SMC ITV3050-03F4N3 Electro-pneumatic Regulator from the ITV1000/2000/3000 Series is engineered for precision control in industrial applications. This regulator offers stepless modulation of air pressure, directly proportional to electric signals, ensuring optimal performance in automated systems. With a sensitivity of 0.2 kPa under a 100 kPa specification, it provides exceptional responsiveness to input variations.
Engineered for accuracy, the regulator maintains a linearity of ±1% or less (Full Scale), ensuring consistent output across its operational range. The hysteresis is minimized to 0.5% or less (Full Scale), reducing error and enhancing repeatability in dynamic environments. This makes it an ideal choice for applications requiring high precision and reliability.
The SMC ITV3050-03F4N3 supports multiple communication protocols, including CC-Link, DeviceNet, PROFIBUS DP, and RS-232C, facilitating seamless integration into existing control systems. This versatility ensures compatibility with a wide range of industrial networks, enhancing system flexibility and scalability.
Designed for engineers and manufacturing professionals, this electro-pneumatic regulator is a robust solution for optimizing pneumatic systems, improving efficiency, and ensuring precise control in complex industrial processes.
- Type:
- 3000 type
- Pressure Range:
- 0.9 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Switch Output/PNP Output
- Thread Type:
- G
- Port Size:
- 1/2
- Bracket:
- Without Bracket
- Cable connector:
- Without Cable Connector
- Pressure display unit:
- bar
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
