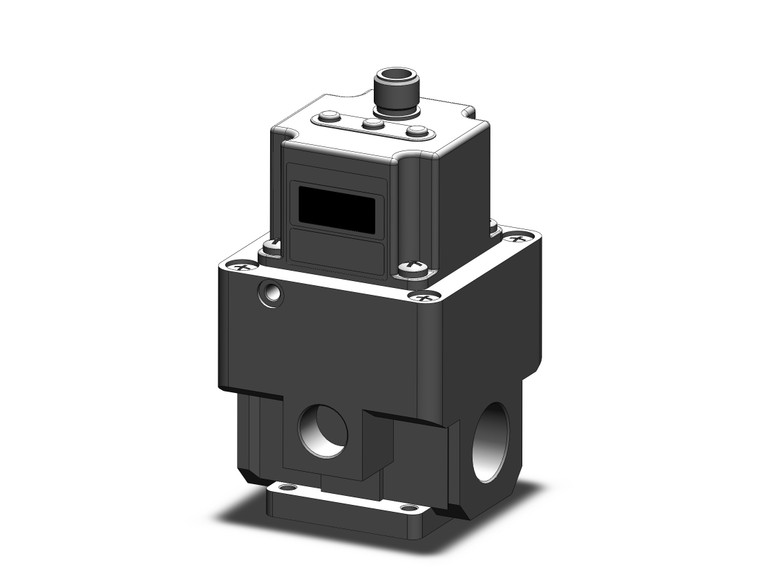

SMC ITV3050-044N3 ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$409.70
The SMC ITV3050-044N3 is a high-performance electro-pneumatic regulator from the ITV1000/2000/3000 Series, designed for precise control of air pressure in response to electric signals. It offers stepless control, ensuring smooth and accurate adjustments. With a sensitivity of 0.2 kPa (100 kPa specification), this regulator provides exceptional precision. Its linearity is maintained at ±1% or less (F.S.), and it features a hysteresis of 0.5% or less (F.S.), ensuring reliable performance. The regulator supports various communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C, making it versatile for integration into different systems. Ideal for applications requiring precise pressure control, the SMC ITV3050-044N3 is a robust and efficient solution.
- Type:
- 3000 type
- Pressure Range:
- 0.9 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Analog Output 4 To 20 mA DC (Sink Type)
- Thread Type:
- Rc
- Port Size:
- 1/2
- Bracket:
- Without Bracket
- Cable connector:
- Without Cable Connector
- Pressure display unit:
- bar
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
