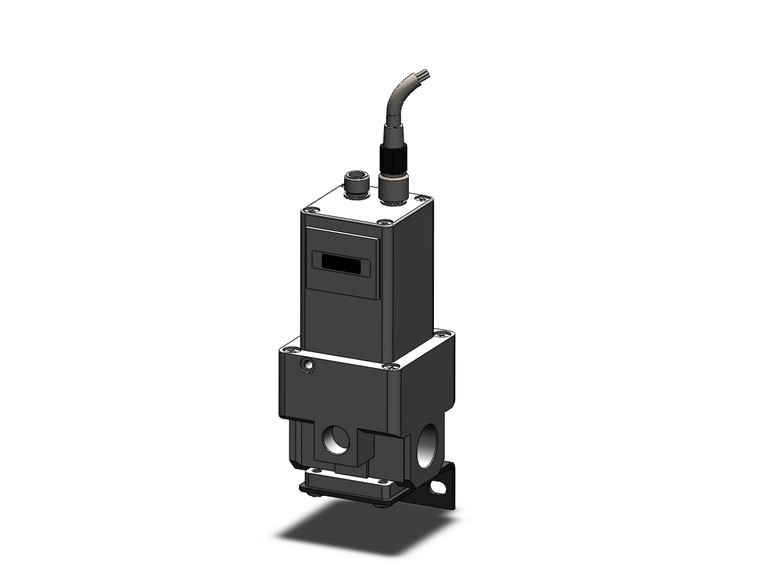

SMC ITV3050-53N4CS4 ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$521.35
The SMC ITV3050-53N4CS4 is a high-performance electro-pneumatic regulator from the ITV1000/2000/3000 Series, designed for precise air pressure control in response to electric signals. It offers stepless control, ensuring smooth and accurate adjustments. With a sensitivity of 0.2 kPa and a linearity of ±1% or less (F.S.), this regulator guarantees reliable performance. The hysteresis is kept at 0.5% or less (F.S.), enhancing its precision. It supports various communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C, making it versatile for integration into different systems. Ideal for applications requiring meticulous air pressure management.
- Type:
- 3000 type
- Pressure Range:
- 0.9 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- 16 points preset input(Switch output/PNP output)
- Monitor Output:
- None
- Thread Type:
- NPT
- Port Size:
- 1/2
- Bracket:
- L-Bracket
- Cable connector:
- Straight Type 3 m
- Pressure display unit:
- psi
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
