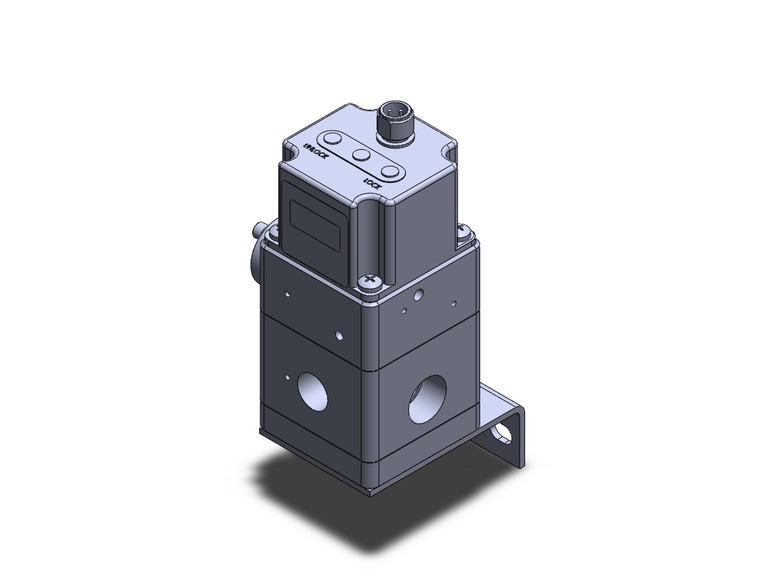

SMC ITVX2030-04N3CL3 ITVX2000 Series 5.0 MPa Maximum Supply Pressure High Pressure Electro-pneumatic Regulator
SMC
$1,258.65
The SMC ITVX2030-04N3CL3 is a high-performance electro-pneumatic regulator from the ITVX2000 Series, designed to provide precise and stepless control of air pressure in response to an electrical signal. This advanced regulator is capable of handling a maximum supply pressure of 5.0 MPa, making it ideal for high-pressure applications. It offers a set pressure range from 0.01 to 3.0 MPa, ensuring versatility and adaptability to various operational needs. With a maximum flow rate of 3000 L/min [ANR], it efficiently manages the flow of air, nitrogen (N2), oxygen (O2), and argon (Ar). The wetted parts are treated with fluorine grease, enhancing durability and performance. This regulator is perfect for industries requiring reliable and precise pressure control.
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Analog Output 4 To 20 mA DC (Sink Type)
- Thread Type:
- NPT
- Bracket:
- L-bracket
- Cable connector:
- Right angle type 2 m
- Pressure display unit:
- bar
