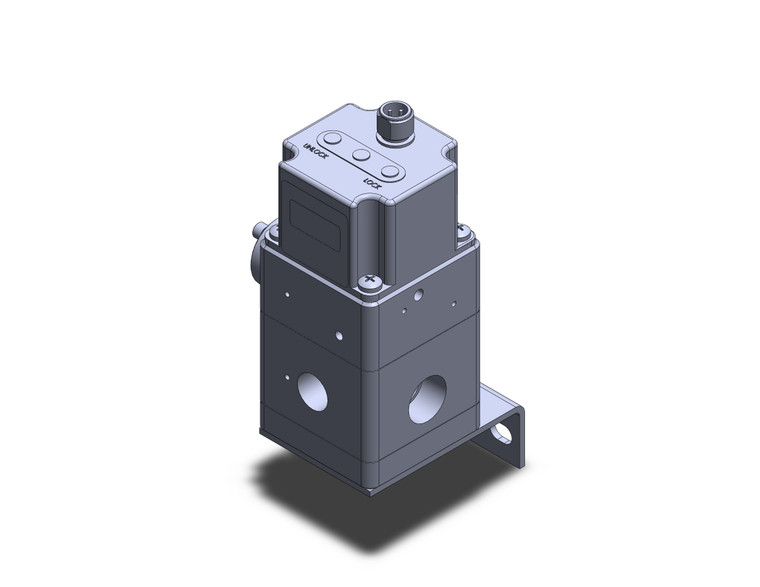

SMC ITVX2030-04N3CN4 ITVX2000 Series 5.0 MPa Maximum Supply Pressure High Pressure Electro-pneumatic Regulator
SMC
$1,239.15
The SMC ITVX2030-04N3CN4 is a high-performance electro-pneumatic regulator from the ITVX2000 Series, designed for precise control of air pressure in industrial applications. This regulator allows for stepless control of air pressure proportional to an electrical signal, ensuring optimal performance and efficiency. With a maximum supply pressure of 5.0 MPa and a set pressure range from 0.01 to 3.0 MPa, it is capable of handling demanding tasks with ease. The regulator boasts a maximum flow rate of 3000 L/min [ANR], making it suitable for high-volume operations. It is compatible with various fluids, including air, nitrogen (N2), oxygen (O2), and argon (Ar), and features wetted parts lubricated with fluorine grease for enhanced durability and reliability. Ideal for applications requiring precise pressure control, the SMC ITVX2030-04N3CN4 is a robust solution for your pneumatic regulation needs.
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Analog Output 4 To 20 mA DC (Sink Type)
- Thread Type:
- NPT
- Bracket:
- L-bracket
- Cable connector:
- Without Cable Connector
- Pressure display unit:
- psi
