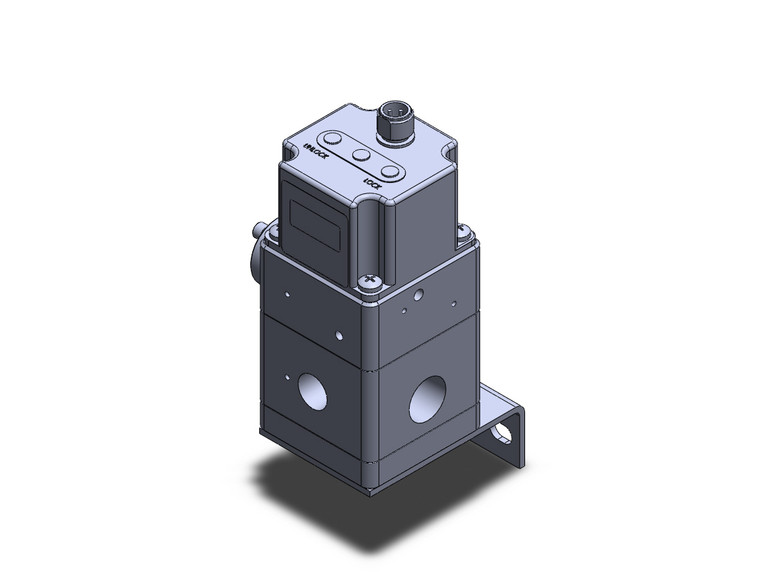

SMC ITVX2030-143CL Hi Pressure Electro-Pneumatic Regulator

SMC ITVX2030-143CL ITVX2000 Series 5.0 MPa Maximum Supply Pressure High Pressure Electro-pneumatic Regulator

SMC
SKU:
ITVX2030-143CL
Availability:
Factory stock
$1,258.65
Condition:
New
Current Stock:
Description

ITVX2000 Series 5.0 MPa Maximum Supply Pressure High Pressure Electro-pneumatic Regulator

  • Stepless control of air pressure proportional to an electrical signal;
  • Maximum supply pressure: 5.0 MPa;
  • Set pressure range: 0.01 to 3.0 MPa;
  • Maximum flow rate: 3000 L/min [ANR];
  • Fluid: Air, N2, O2, Ar;
  • Wetted parts: Fluorine grease
    • Additional Information
    Input Signal:
    Current Type 0 To 20 Ma DC (Sink Type)
    Monitor Output:
    Analog Output 4 To 20 mA DC (Sink Type)
    Thread Type:
    Rc
    Bracket:
    L-bracket
    Cable connector:
    Right angle type 2 m
    Pressure display unit:
    MPa
