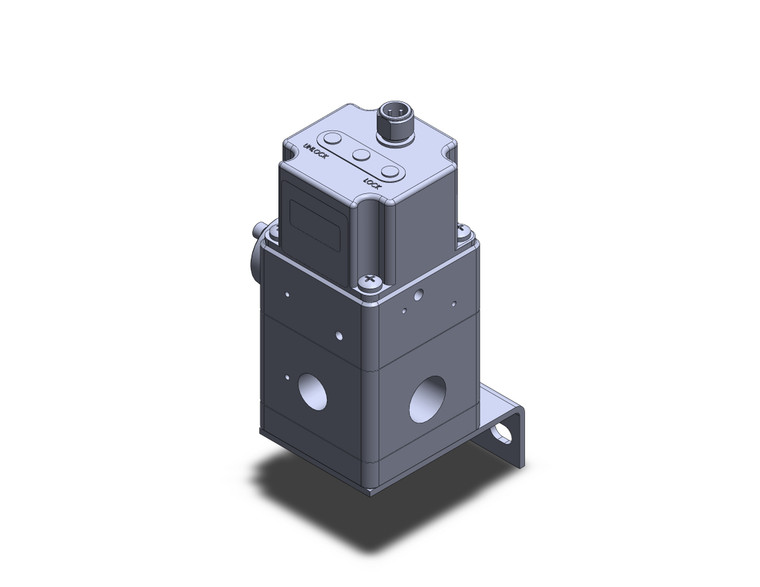

SMC ITVX2030-213CS3 regulator, electropneumatic hi pressure electro-pneumatic regulator

SMC ITVX2030-213CS3 ITVX2000 Series 5.0 MPa Maximum Supply Pressure High Pressure Electro-pneumatic Regulator

SMC
SKU:
ITVX2030-213CS3
Availability:
Contact us to confirm availability and lead times.
$1,225.65
Condition:
New
Current Stock:
Description

ITVX2000 Series 5.0 MPa Maximum Supply Pressure High Pressure Electro-pneumatic Regulator

  • Stepless control of air pressure proportional to an electrical signal;
  • Maximum supply pressure: 5.0 MPa;
  • Set pressure range: 0.01 to 3.0 MPa;
  • Maximum flow rate: 3000 L/min [ANR];
  • Fluid: Air, N2, O2, Ar;
  • Wetted parts: Fluorine grease
    • Additional Information
    Input Signal:
    Voltage Type 0 To 5 VDC
    Monitor Output:
    Analog Output 1 To 5 VDC
    Thread Type:
    Rc
    Bracket:
    L-bracket
    Cable connector:
    Straight Type 3 m
    Pressure display unit:
    bar
