Description

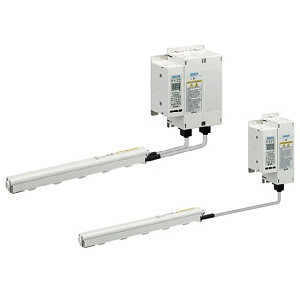

IZT40/41/42, Bar Type Ionizer, Separate Controller and Power Supply Module
The IZT bar ionizer is an industrial static control solution. Bar ionizers generate a curtain of static eliminating ions effective for a distance up to 2000mm/6.5 ft. The IZT s low profile is also ideal for tight clearance installations. Compared to SMC s IZS4 bar ionizers, the power supply and control modules have been separated from the bar, resulting in a reduction in bar height. IZT bars can be placed closer to static-carriying materials in more confined adjacent spaces. The separate controller can be mounted in a workstation for easier access and observation during operation. Models include the standard IZT40, the IZT41 which adds auto-balance, emitter maintenance detection, and I/O signals, and the IZT42 with low amplitude ion generation for sensitive electronics. Extending the value of IZT, one controller can manage a maximum of 4 ionizing bars. Needle cartridges are easily removed, without tools, for cleaning or end-of-life replacement, futher extending this ionizer s value.
- 40 available lengths, with 2 to 41 emitters, up to 2500mm/8.2 ft long- High speed or energy saving cartridges in a tungsten or single crystal silicon
- Controller features multiple function modes and diagnostic LED s
- 16 metric and inch sized fitting choices available
- Various cable lengths available for multiple configurations
- Brackets available for controller, power supply, and bar
- Optional drop prevention covers retain cartridges if unexpectedly unlocked
-
