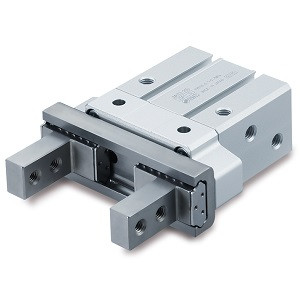

SMC JMHZ2-12D1-M9PM JMHZ2 Series Compact Type Parallel Style Air Gripper

SMC JMHZ2-12D1-M9PM JMHZ2 Series Compact Type Parallel Style Air Gripper

SMC
SKU:
JMHZ2-12D1-M9PM
Availability:
Factory stock
$321.20
Condition:
New
Current Stock:
Description

JMHZ2 Series Compact Type Parallel Style Air Gripper

  • A single acting type has been added [New];
  • Made-to-order options have been added [New];
  • Although downsized, gripping point is maintained (ø20?ø16); Overall length: Max. 21.7 mm shorter (102.7 mm?81 mm); Thickness: Max. 7.6 mm shorter (33.6 mm?26 mm); Weight: Max. 180 g lighter (420 g?240 g);
  • High rigidity and precision are achieved by integrating the guide and finger in one piece;
  • With high-precision linear guide; Repeatability: ±0.01 mm;
  • Linear guide of the higher rigidity and precision is used; Higher rigidity
