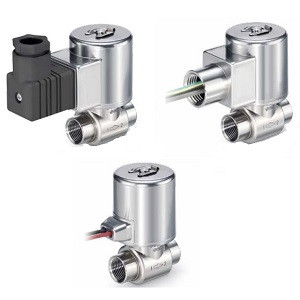

SMC JSX21-SN402N-5DZ JSX Series Direct Operated 2-port Solenoid Valve

SMC JSX21-SN402N-5DZ JSX Series Direct Operated 2-port Solenoid Valve

SMC
SKU:
JSX21-SN402N-5DZ
Availability:
Factory Stock
$75.00
Condition:
New
Current Stock:
Description

JSX Series Direct Operated 2-port Solenoid Valve

  • The pilot operated JSXD series (N.O. specification) has been added. [New];
  • A direct operated vacuum type (JSX V series) has been added. [New];
  • A direct operated steam type (JSX S series) has been added. [New];
  • A direct operated high pressure type (JSX H series) has been added. [New];
  • Improved environmental resistance due to the stainless steel coil cover; ?IP67 enclosure/NEMA4X??; ? IP65 for models with a DIN terminal;
  • Space saving; Compact: Valve volume reduced by 25%?, Lightweight: Weight reduced by 30%?; ? Compared with the existing model;
  • Energy saving; Coil force: 10% increase?, Power consumption: 14% reduction?; ? Compared with the existing model;
  • 360° lead wire insertion and removal is possible;
  • Improved weather resistance in outdoor environments
    • Additional Information
    Size:
    20
    Valve Type:
    N.C.
    Body Material:
    Stainless Steel
    Seal Material:
    NBR
    Orifice Diameter And Port Size:
    Orifice Diameter:?4mm,Port Size:1/4
    Thread Type:
    NPT
    Rated Voltage:
    24 VDC
    Electrical Entry:
    DIN Terminal With Light(With Surge Voltage Suppressor)
    Oil-free Option:
    None
    Option:
    Without Bracket
