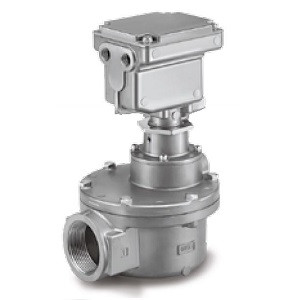

SMC JSXFF-14F-5PBB-S JSXFF-P Series Pulse Valve Valve For Dust Collector SMARTVENT Type Direct Piping Type

SMC JSXFF-14F-5PBB-S JSXFF-P Series Pulse Valve Valve For Dust Collector SMARTVENT Type Direct Piping Type

SMC
SKU:
JSXFF-14F-5PBB-S
Availability:
Factory Stock
$368.20
Condition:
New
Current Stock:
Description

JSXFF-P Series Pulse Valve Valve For Dust Collector SMARTVENT Type Direct Piping Type

  • SMARTVENT type added [New]; Integrated control board eliminates the need for a control box;
  • Life: 10 million cycles or more/10 times or more;
  • High peak pressure and low air consumption; Peak pressure: 15% increase; Air consumption: 35% reduction;
  • Fluid temperature: ?40 to 60?;
  • Supports a wide temperature range from low to high temperature
    • Additional Information
    Valve Type:
    Solenoid Valve
    Piping Type:
    Direct Piping Type
    Port Size:
    1 1/2 (40A)
    Pipe Thread Type:
    G
    Rated Voltage:
    24 VDC
    Electric Control:
    Board Type:Base
    Fluid And Ambient Temperatures:
    -40 to 60?
    Silencer:
    With Silencer
    Cable Length:
    IN Side
