SMC KQ2H23-00A1 Fitting, Union Pack of 10

(No reviews yet) Write a Review

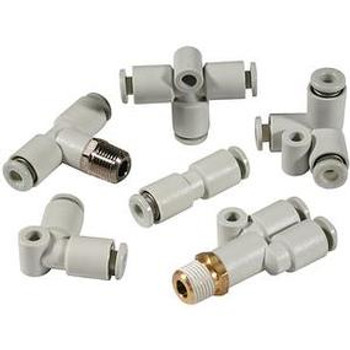

KQ2, One-touch Fitting, for Metric Size Tube, No Connection Thread

KQ2 one-touch, metric and inch size fittings are available in a wide variety of sizes, body styles and thread types. The use of a special profile seal allows the KQ2 to be used for a wide range of pressures from a low vacuum up to a pressure of 1MPa. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.

- Accepts FEP, PFA, nylon, soft nylon, and polyurethane tubes
- Fluid: air, water
- Operating pressure range: -100kPa~1MPa
- Release collar allows easy removal of tubing without causing damage to the tube
- This product is not intended for use in potable water systems

Series Catalog

AutoCAD File

View AllClose

Additional Information

H (Straight Uniion, Different Diameter Straight)
Applicable Tubing O.D.:
23 (3.2)
Applicable Tubing O.D., Tube Conn. Dia.:
00 (Same Dia. Tube)
Release Button:
1 (Oval Type)
Made to Order:
