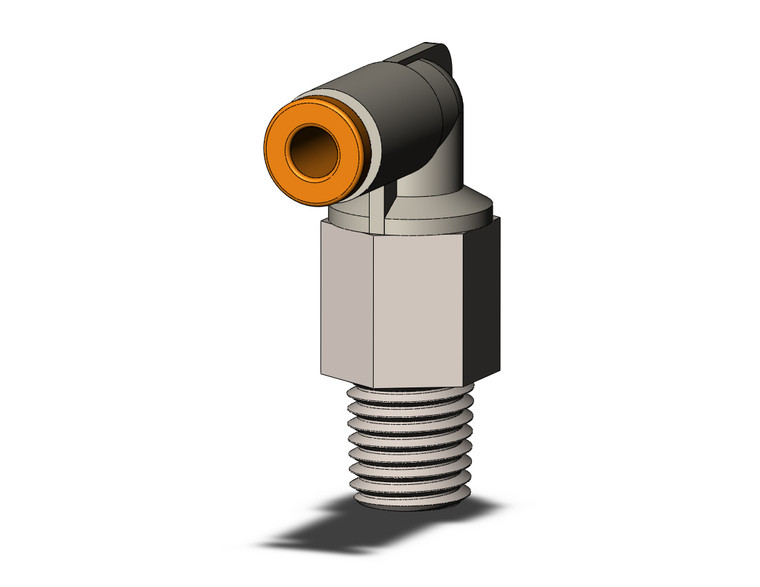

SMC KQ2L01-33N Fitting, Male Elbow Pack of 10

SMC KQ2L01-33N Fitting, Male Elbow Pack of 10

SMC
SKU:
KQ2L01-33N
Availability:
Factory Stock
$26.20
Condition:
New
Current Stock:
Description

KQ2L Series Inch Size One-touch Fittings Connection Thread

  • Possible to use in vacuum to -100 kPa;
  • Body type: Totaled 51 models;
  • Thread material/Surface treatment(Treated or Non-treated): 2 types;
  • Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated;
  • Applicable Tubing O.D.; Circular; Metric 2, 3.2, 4, 6, 8, 10, 12, 16; Inch 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", 1/2"; Oval; Metric 3.2, 4, 6; Inch 1/8", 5/32", 3/16";
  • Connection Thread; Metric M3, M5, M6; R,Rc 1/8,1/4,3/8,1/2; G 1/8,1/4,3/8,1/2; NPT 10-32UNF,1/16,1/8,1/4,3/8,1/2; Uni 1/8,1/4,3/8,1/2;
  • Seal Method; Sealant/Gasket Seal; Face Seal; Gasket Seal Uni Thread
    • Additional Information
    Applicable Tubing O.D.:
    1/8"
    Bore Size:
    NPT1/16
    Thread Material/Surface Treatment:
    Brass+Electroless Nickel Plated
    Male Thread Seal Method:
    None
    Made To Order:
    Standard
