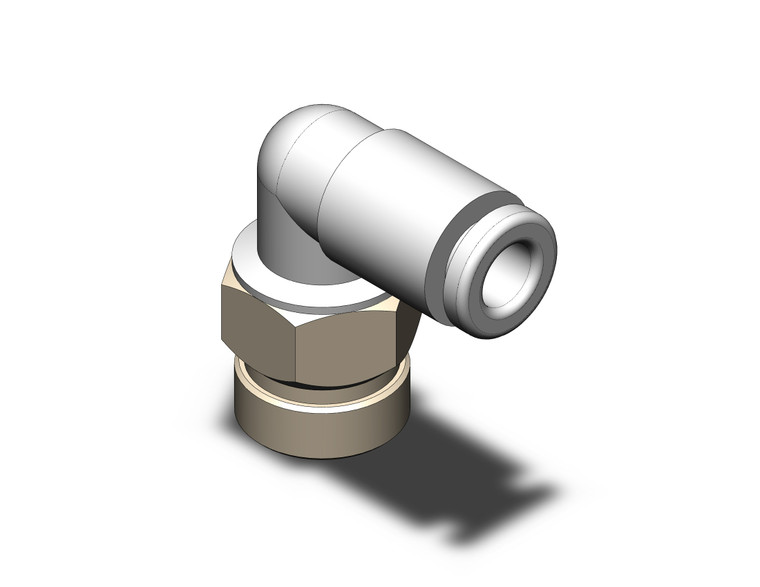

SMC KQ2L04-U01A Fitting, Male Elbow Pack of 10

The SMC KQ2L04-U01A Fitting, Male Elbow, is a precision-engineered component from the KQ2L Series, designed for optimal performance in pneumatic systems. This pack of 10 fittings is ideal for applications requiring reliable and efficient connections in both vacuum and pressure environments, with a vacuum capability down to -100 kPa. Engineered with versatility in mind, the KQ2L04-U01A features a comprehensive range of body types, totaling 51 models, to suit diverse application needs. The fittings are available in two thread material options: untreated brass and brass with an electroless nickel plating, providing enhanced corrosion resistance and durability. The KQ2L04-U01A supports a wide array of tubing outer diameters, accommodating both circular and oval profiles. Metric sizes range from 2mm to 16mm, while inch sizes span from 1/8" to 1/2", ensuring compatibility with various tubing standards. The connection threads are equally versatile, including Metric (M3, M5, M6), R/Rc (1/8, 1/4, 3/8, 1/2), G (1/8, 1/4, 3/8, 1/2), NPT (10-32UNF, 1/16, 1/8, 1/4, 3/8, 1/2), and Uni (1/8, 1/4, 3/8, 1/2) threads. The fitting employs a gasket seal method, ensuring a secure and leak-proof connection. This feature is particularly beneficial in maintaining system integrity under varying pressure conditions. The face seal and gasket seal options further enhance the fitting's adaptability to different sealing requirements. Ideal for engineers and manufacturing professionals, the SMC KQ2L04-U01A Male Elbow Fitting is a robust solution for pneumatic systems, offering flexibility, reliability, and ease of installation. Its design and material options make it a preferred choice for high-performance applications, ensuring seamless integration into your system.
