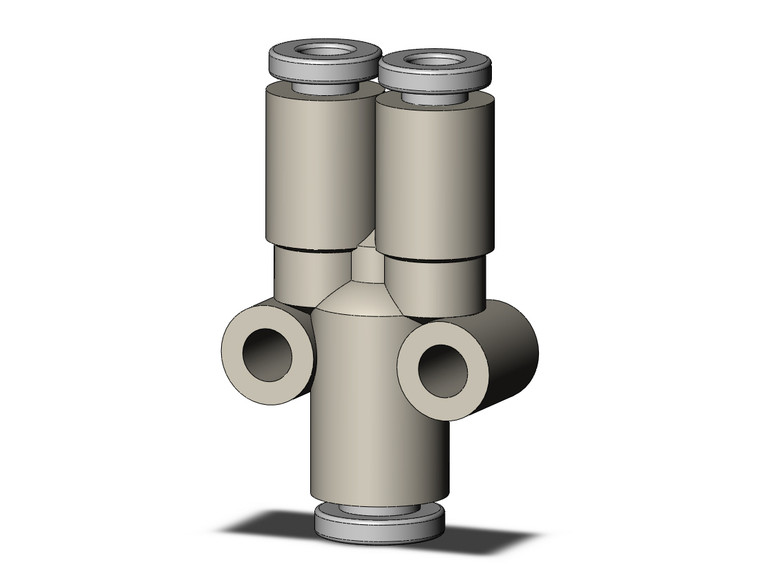

SMC KQ2U23-04A fitting, branch y

SMC KQ2U23-04A KQ2U Series Metric Size One-touch Fittings Different Diameter Union"Y"

SMC
SKU:
KQ2U23-04A
Availability:
Factory stock: 67
$4.86
Condition:
New
Current Stock:
Description

KQ2U Series Metric Size One-touch Fittings Different Diameter Union"Y"

  • Possible to use in vacuum to -100 kPa;
  • Body type: Totaled 51 models;
  • Thread material/Surface treatment(Treated or Non-treated): 2 types;
  • Selectable surface treatment: Brass(No plating), Brass + Electroless nickel plated;
  • Applicable Tubing O.D.;?Circular;?Metric??2,?3.2,?4,?6,?8,?10,?12,?16;?Inch??1/8",?5/32",?3/16",?1/4",?5/16",?3/8",?1/2";?Oval;?Metric??3.2,?4,?6;?Inch??1/8",?5/32",?3/16";
  • Connection Thread;?Metric?M3, M5, M6;?R,Rc?1/8,1/4,3/8,1/2;?G?1/8,1/4,3/8,1/2;?NPT?10-32UNF,1/16,1/8,1/4,3/8,1/2;?Uni?1/8,1/4,3/8,1/2;
  • Seal Method;?Sealant/Gasket Seal;?Face Seal;?Gasket Seal?Uni Thread?
    • Additional Information
    Applicable Tubing O.D.a:
    ?3.2 mm
    Applicable Tubing O.D.b:
    ?4 mm
    Made To Order:
    Standard
