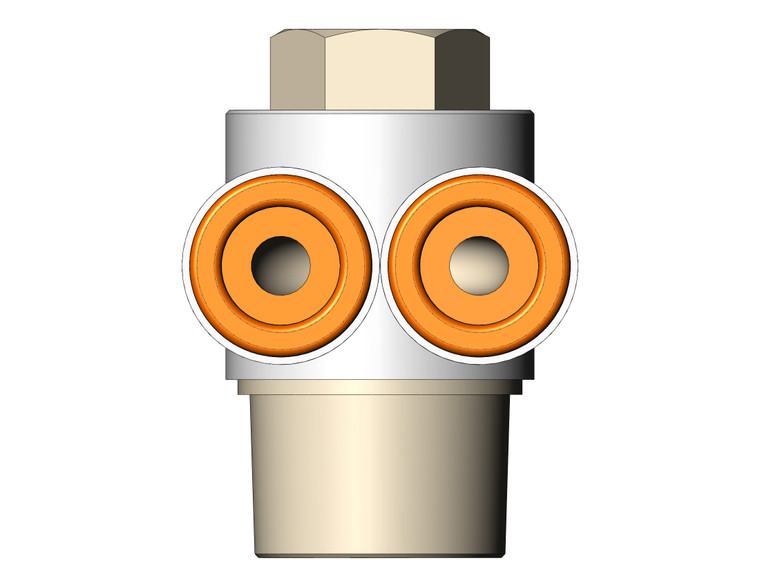

SMC KQ2Z09-36NS KQ2Z Series One-Touch Fitting Branch Universal Male Elbow with Sealant

The SMC KQ2Z09-36NS KQ2Z Series Inch Size One-touch Fittings Branch Universal Male Elbow With Sealant is engineered for precision and reliability in pneumatic systems. Designed to operate efficiently in vacuum conditions down to -100 kPa, this fitting is a versatile solution for various industrial applications. With a comprehensive range of 51 body models, the KQ2Z09-36NS offers flexibility in design and application. The fitting is available in two thread material options: untreated brass and brass with electroless nickel plating, providing enhanced corrosion resistance and durability. This fitting accommodates a wide array of tubing outer diameters, supporting both circular and oval configurations. Circular tubing options include metric sizes of 2, 3.2, 4, 6, 8, 10, 12, and 16 mm, as well as inch sizes of 1/8", 5/32", 3/16", 1/4", 5/16", 3/8", and 1/2". Oval tubing is supported in metric sizes of 3.2, 4, and 6 mm, and inch sizes of 1/8", 5/32", and 3/16". The connection thread versatility is unmatched, with compatibility for Metric (M3, M5, M6), R, Rc (1/8, 1/4, 3/8, 1/2), G (1/8, 1/4, 3/8, 1/2), NPT (10-32UNF, 1/16, 1/8, 1/4, 3/8, 1/2), and Uni (1/8, 1/4, 3/8, 1/2) threads. This ensures seamless integration into existing systems. The seal method is robust, featuring options for sealant/gasket seal, face seal, and gasket seal for Uni threads, ensuring leak-proof performance and reliability. Optimize your pneumatic systems with the SMC KQ2Z09-36NS, a fitting that combines engineering excellence with practical versatility, making it an essential component for engineers and manufacturing professionals seeking high-performance solutions.
