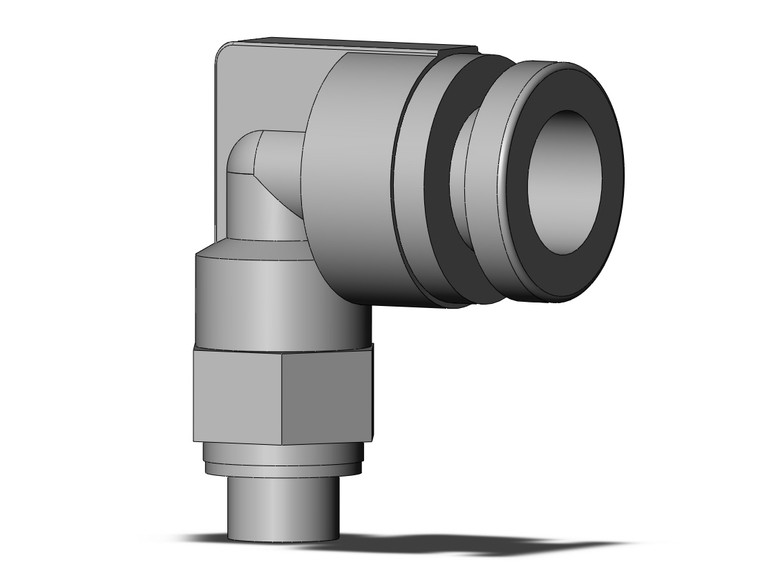

SMC KQB2L07-32 One-Touch Fitting, Brass
- SKU:
- KQB2L07-32
- Condition:
- New
- Availability:
- In stock: 557
- Product Category:
- One Touch Fittings
- Port Size:
- 10-32UNF Thread
- Application Tube OD:
- 1/4"
- Sealant:
- w/o sealant
- Model:
- Male Elbow
Description
KQB2, Metal One-touch Fittings, Inch Size (UNF, NPT Threads)
Compact and lightweight, the KQB2 one-touch fitting uses electroless nickel plated brass components as standard specification. Its maximum operating temperature is 150 C. KQB2 fittings can be used with fluid, and in environments having a large temperature change. Configuration variations have been improved to 17 models. Applicable tube sizes are 3.2 to 16 and 1/8 to 1/2 . Series KQB2 is available with M, R, Rc, UNF, NPT or G connection threads.
- Threads: UNF, NPT- Compact light weight
- Grease-free
- Applicable tube material: FEP, PFA, nylon, soft nylon, polyurethane, polyolefin
- Electroless nickel plated (brass parts)
- This product is not intended for use in potable water systems
-
