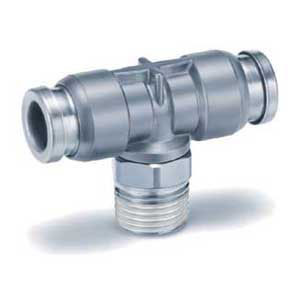

SMC KQB2T03-N01S One-Touch Fitting, Brass
- SKU:
- KQB2T03-N01S
- Condition:
- New
Description
compact and lightweight, the kqb2 one-touch fitting uses electroless nickel plated brass components as standard specification. its maximum operating temperature is 150? c. kqb2 fittings can be used with fluid, and in environments having a large temperature change. configuration variations have been improved to 17 models. applicable tube sizes are +3.2 to +16 and 1/8" to 1/2". series kqb2 is available with m, r, rc, unf, npt or g connection threads.
- threads: unf, npt
- compact and light weight
- grease-free
- applicable tube material: fep, pfa, nylon, soft nylon, polyurethane, polyolefin
- electroless nickel plated (brass parts)
Additional Information
Model: |
T (Male Branch Tee, Union Tee, Different Dia. Tee) |
Applicable Tube O.D.: |
03 (5/32") |
Port Size/Applicable Tube: |
N01 (1/8" Thread) |
Sealant: |
S (Sealant) |
