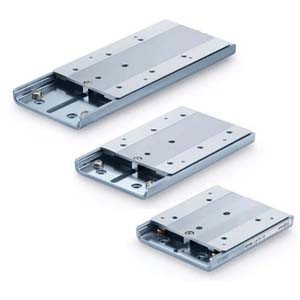

SMC LAT3-20-3AN1D LAT3 Series Card Motor

SMC LAT3-20-3AN1D LAT3 Series Card Motor

SMC
SKU:
LAT3-20-3AN1D
$1,075.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

LAT3 Series Card Motor

  • The transportation, pushing and length measurement systems have been miniaturized through the use of a linear motor.;
  • Thickness 9 mm, Weight 130 g (at stroke 10 mm);
  • Maximum pushing force: 6 N;
  • Positioning repeatability: ±5 ?m;
  • Pushing measurement accuracy: ±10 ?m;
  • Maximum operating frequency: 500 cpm
    • Additional Information
    Sensor Resolution:
    30?m
    Stroke:
    Stroke 20 mm
    Actuator Cable Length:
    3 m
    Controller Type:
    With controller LATCA(NPN)
    I/O Cable Length:
    1 m
    Controller Mounting:
    DIN Rail Mounting
    I/O Cable Specification Change:
    No Specification Change
