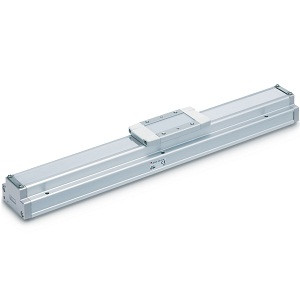

SMC LEFG16-S-300 (11-)LEFG Series Electric Actuator/Slider Type Support Guide
SMC
$270.00
SMC LEFG16-S-300 - LEFG Series Support Guide, 16mm, 300mm Stroke, Ball Screw Compatible
The SMC LEFG16-S-300 provides passive linear support with LEF-compatible mounting. 16mm frame, 300mm stroke. Motorless support guide for multi-axis system configurations.
Key Features & Specifications
- No motor required - passive support driven by paired LEFS or LEFB slider
- Shared LEF dimensions - simplified design and assembly integration
- Seal band equipped - prevents grease scattering and blocks foreign matter
- Multi-axis compatible - 2/3-axis gantry systems via LEA mounting kits
- Ball bushing guide - smooth, low-friction linear motion
- Clean series compatible - general environment rating
- Size: 16mm | Stroke: 300mm | Ball Screw | Support Guide
Typical Applications
Designed for large-format positioning and multi-axis transfer systems.
Manufactured by SMC Corporation.
- Clean Series:
- General Environment
- Guide Type:
- Support Guide
- Size:
- 16
- Type of Mounting Pitch:
- for Ball Screw Drive
- Stroke:
- Stroke 300 mm
- Grease Application (Seal Band Part):
- With
