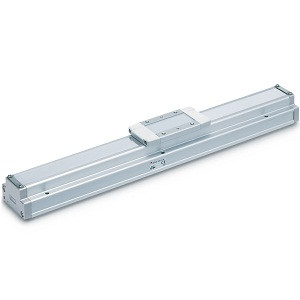

SMC LEFG40-BS-1200 (11-)LEFG Series Electric Actuator/Slider Type Support Guide
SMC
$670.00
SMC LEFG40-BS-1200 - LEFG Series Support Guide, 40mm, 1200mm Stroke, Ball Screw Compatible
The SMC LEFG40-BS-1200 provides passive linear support with LEF-compatible mounting. 40mm frame, 1200mm stroke. Motorless support guide for multi-axis system configurations.
Key Features & Specifications
- No motor required - passive support driven by paired LEFS or LEFB slider
- Shared LEF dimensions - simplified design and assembly integration
- Seal band equipped - prevents grease scattering and blocks foreign matter
- Multi-axis compatible - 2/3-axis gantry systems via LEA mounting kits
- Ball bushing guide - smooth, low-friction linear motion
- Clean series compatible - general environment rating
- Size: 40mm | Stroke: 1200mm | Ball Screw | Support Guide
Typical Applications
Designed for 2/3-axis gantry systems with cantilevered loads.
Manufactured by SMC Corporation.
- Clean Series:
- General Environment
- Guide Type:
- Support Guide
- Size:
- 40
- Type of Mounting Pitch:
- for Belt Drive (AC)
- Stroke:
- Stroke 1200 mm
- Grease Application (Seal Band Part):
- With
