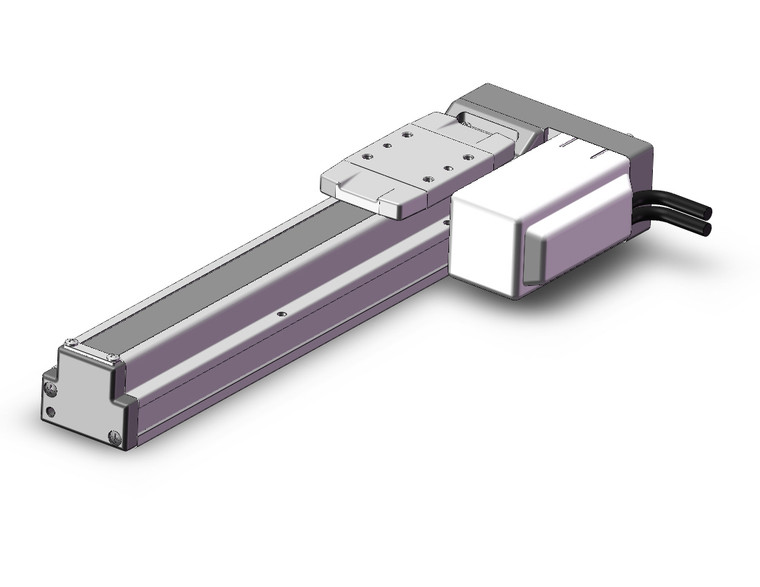

SMC LEFS16LB-150-S5 Ball Screw Drive Actuator

SMC LEFS16LB-150-S5 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

SMC
SKU:
LEFS16LB-150-S5
Availability:
Factory Stock
$785.00
Condition:
New
Current Stock:
Description
The SMC LEFS16LB-150-S5 is a high-performance electric actuator designed for precision and efficiency. Featuring a slider type ball screw drive, this actuator is powered by a step motor (servo 24 VDC) and a servo motor (24 VDC), ensuring reliable and smooth operation. It boasts a maximum workload capacity of 65 kg and offers exceptional positioning repeatability of ±0.02 mm, making it ideal for applications requiring high accuracy. This actuator complies with ISO Class 4 clean specifications (ISO14644-1) for the 11-LEFS model, ensuring it meets stringent cleanliness standards. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. The LEFS series also includes an AC servo motor option, offering high output power (100/200/400 W) and improved high-speed transfer capabilities. It supports high acceleration and deceleration rates of up to 20000mm/S², and features a pulse input type with an internal absolute encoder for enhanced precision. The high precision type offers even greater positioning repeatability of ±0.01 mm. Compatible drivers for the LEFS series include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models also discontinued. This versatile actuator is perfect for a wide range of industrial applications, providing reliable performance and precision control.
Additional Information
Accuracy:
Basic
Size:
16
Motor Mounting Position:
Left Side Parallel
Motor Type:
Step Motor (Servo 24 VDC)
Lead:
Size16: 5 mm, Size25: 6 mm, Size32: 8 mm, Size40: 10 mm
Stroke:
Stroke 150 mm
Motor Option:
Without Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Actuator Cable Type:
Standard Cable
Actuator Cable Length:
5 m
Controller Type:
Without Controller
I/O Cable Length, Communication Plug:
Without Cable, Without Communication Plug Connector
Controller Mounting:
Screw Mounting
