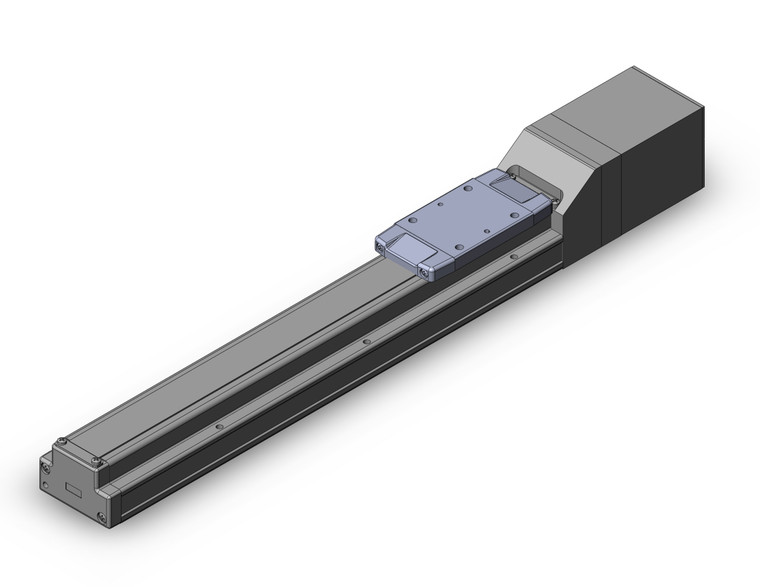

SMC LEFS25A-250-S3 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)
SMC
$875.00
The SMC LEFS25A-250-S3 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and is powered by a step motor with a servo capability at 24 VDC. It boasts a maximum workload capacity of 65 kg and offers exceptional positioning repeatability of ±0.02 mm, ensuring precise and reliable operations.
Engineered to meet clean specifications, the LEFS25A-250-S3 complies with ISO Class 4 (ISO14644-1) standards, making it suitable for environments requiring stringent cleanliness. The actuator is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued.
For applications demanding high output, the LEFS Series offers AC servo motors with power options of 100/200/400 W, enhancing high-speed transfer capabilities and supporting high acceleration/deceleration rates of up to 20000mm/S². The actuator also includes an internal absolute encoder for the LECSB/C/S models, providing high precision with a positioning repeatability of ±0.01 mm.
Compatible with various drivers such as LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, the LEFS25A-250-S3 is a versatile solution for advanced automation needs, although some driver models are no longer in production. This actuator is ideal for industries requiring precise motion control and high-speed operations.
- Accuracy:
- Basic
- Size:
- 25
- Motor Mounting Position:
- In-line
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size16: 10 mm, Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
- Stroke:
- Stroke 250 mm
- Motor Option:
- Without Lock
- Auto Switch Mounting Bracket:
- None
- Grease Application (Seal Band Part):
- With
- Positioning Pin Hole:
- Housing B Bottom
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 3 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
