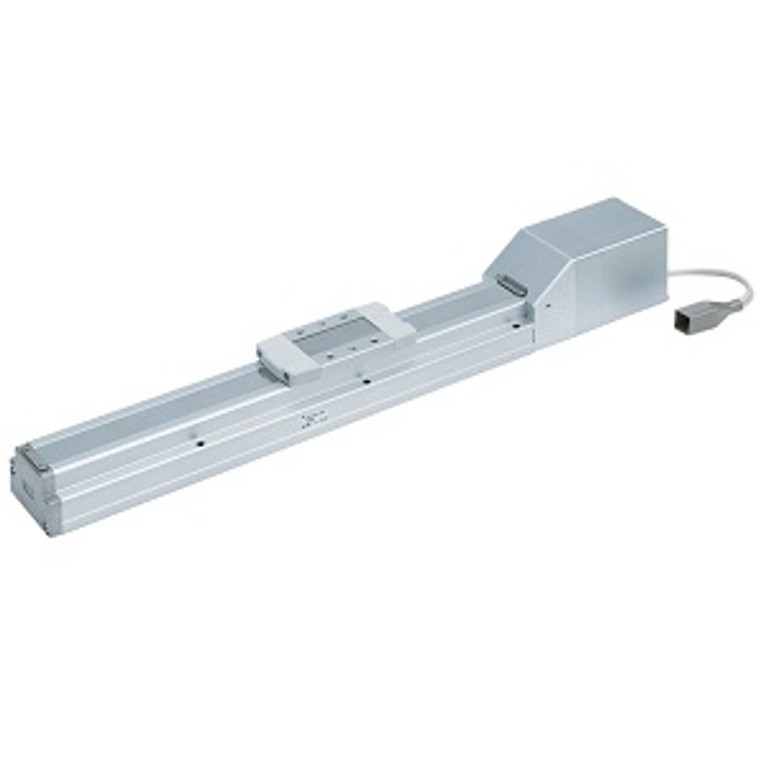

SMC LEFS25EA-600-R5 LEFS-E Series Electric Actuator/Slider Type Ball Screw Drive Battery-less Absolute Encoder

SMC LEFS25EA-600-R5 LEFS-E Series Electric Actuator/Slider Type Ball Screw Drive Battery-less Absolute Encoder

SMC
SKU:
LEFS25EA-600-R5
$0.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

LEFS-E Series Electric Actuator/Slider Type Ball Screw Drive Battery-less Absolute Encoder

  • Restart from the last stop position is possible;
  • Easy operation restart after recovery of the power supply; The position information is held by the encoder even when the power supply is turned off; A return to origin operation is not necessary when the power supply is recovered;
  • No battery is installed. Reduced maintenance; No battery is used to store the position information; There is no need to manage spare batteries or replacement maintenance;
  • Max. work load: 65 kg;
  • Positioning repeatability: ±0.015 mm (High precision type) ;
  • Compatible controllers: JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1
    • Additional Information
    Accuracy:
    Basic Type
    Size:
    25
    Motor Mounting Position:
    In-line
    Motor Type:
    Battery-less Absolute Encoder Type(Step Motor 24 VDC)
    Lead:
    LEFS25:12mm,LEFS32:16mm,LEFS40:20mm
    Stroke:
    Stroke 600 mm
    Motor Option:
    Without Lock
    Auto Switch Compatibility:
    None
    Grease Application (Seal Band Part):
    With
    Positioning Pin Hole:
    Housing B Bottom
    Actuator Cable Type/Length:
    Robotic Cable 5 m
    Communication Protocol Input/Output:
    Without Controller
    Number Of Axes/Special Specification:
    Without Controller
    Mounting:
    Without Controller
    Communication Plug Connector I/O Cable:
    Without Controller Or Without Accessory
