SMC LEFS25NZB-50K Ball Screw Drive Slider Actuator

SMC LEFS25NZB-50K LEFS Series Electric Actuator/Slider Type Ball Screw Drive Motorless Type

SMC
SKU:
LEFS25NZB-50K
Availability:
Factory stock
$925.00
Condition:
New
Current Stock:
Description

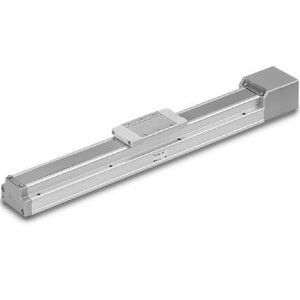

SMC LEFS25NZB-50K - LEFS Series Electric Slider, 25mm, 50mm Stroke

The SMC LEFS25NZB-50K is an electric slide table actuator with 25mm frame and 50mm stroke. Compact slider with integrated linear guide for precise positioning.

Key Features & Specifications

  • Electric slide table - programmable positioning with high repeatability
  • Integrated linear guide - precision ball bearing slide for smooth travel
  • Step or servo motor options - matched to application requirements
  • Compact low-profile body - minimized height for constrained layouts
  • Controller compatible - SMC LECP/JXC series
  • Multi-axis ready - stackable for XY and XYZ configurations
  • Size: 25mm | Stroke: 50mm | Electric Slider

Typical Applications

Designed for precision positioning, automated inspection, dispensing, and multi-axis transfer systems requiring compact electric actuation.

Manufactured by SMC Corporation.

Additional Information
Accuracy:
Basic
Size:
25
Motor Mounting Position:
In-line
Mounting Type:
Mounting Type Z
Lead:
Size25: 6 mm, Size32: 8 mm, Size40: 10 mm
Stroke:
Stroke 50 mm
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Body Bottom 2 Locations
Made To Order:
Standard
