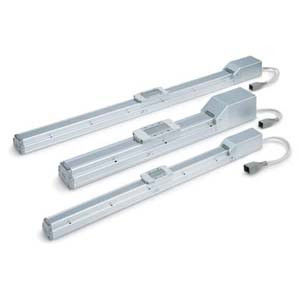

SMC LEFS32A-550-R3 Ball Screw Drive Actuator

SMC LEFS32A-550-R3 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

SMC
SKU:
LEFS32A-550-R3
Availability:
Contact us to confirm availability and lead times.
$1,235.00
Condition:
New
Current Stock:
Description
The SMC LEFS32A-550-R3 is a versatile electric actuator designed for precision and efficiency. This slider type ball screw drive step motor operates on a 24 VDC servo motor, ensuring reliable performance for various applications. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it is ideal for tasks requiring high accuracy. The LEFS series is compliant with ISO Class 4 clean specifications, making it suitable for environments with stringent cleanliness requirements. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. For those seeking enhanced performance, the LEFS AC Servo Motor variant offers high output options of 100/200/400 W, improved high-speed transfer capabilities, and high acceleration/deceleration rates of up to 20000mm/S². It features a pulse input type and an internal absolute encoder for the LECSB/C/S models, providing positioning repeatability of ±0.01 mm for high precision tasks. Compatible drivers for the LEFS series include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models also discontinued. Whether for industrial automation or specialized applications, the SMC LEFS32A-550-R3 offers a robust solution for your motion control needs.
Additional Information
Accuracy:
Basic
Size:
32
Motor Mounting Position:
In-line
Motor Type:
Step Motor (Servo 24 VDC)
Lead:
Size16: 10 mm, Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
Stroke:
Stroke 550 mm
Motor Option:
Without Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Actuator Cable Type:
Robotic Cable (Flexible Cable)
Actuator Cable Length:
3 m
Controller Type:
Without Controller
I/O Cable Length, Communication Plug:
Without Cable, Without Communication Plug Connector
Controller Mounting:
Screw Mounting
