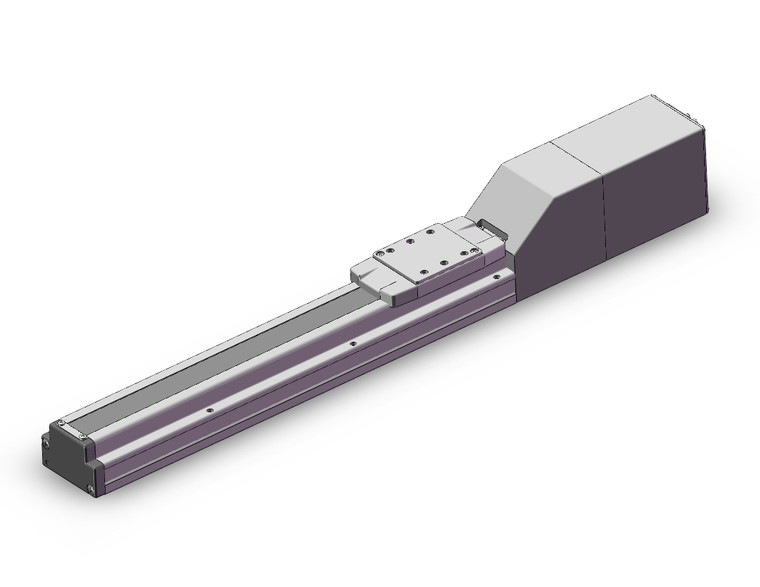

SMC LEFS32T7A-300-S2 Ball Screw Drive Actuator

SMC LEFS32T7A-300-S2 LEFS Series Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor Corresponding To LECS -T Series Driver

SMC
SKU:
LEFS32T7A-300-S2
Availability:
Factory Stock
$1,965.00
Condition:
New
Current Stock:
Description
The SMC LEFS32T7A-300-S2 is a high-performance electric actuator designed for precision and efficiency. This slider type ball screw drive is powered by an AC servo motor, making it ideal for applications requiring accurate positioning and high-speed transfer. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it ensures reliable and consistent performance. The actuator is compliant with ISO Class 4 clean specifications, making it suitable for cleanroom environments. It is compatible with a range of controllers and drivers, including the JXC series and LECS series, providing flexibility and ease of integration into existing systems. The high output motor options (100/200/400 W) and enhanced acceleration/deceleration capabilities (up to 20000mm/S2) further enhance its operational efficiency. Additionally, the actuator features an internal absolute encoder for precise control, making it a versatile choice for various industrial automation applications.
Additional Information
Accuracy:
Basic
Size:
32
Motor Mounting Position:
In-line
Motor Type:
AC Servo Motor(Absolute Encoder), Output 200W, Actuator Size 32 mm
Lead:
Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
Stroke:
Stroke 300 mm
Motor Option:
Without Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Cable Type:
Standard Cable
Cable Length:
2 m
Driver Type:
Without Driver
I/O Cable Length:
Without Cable
