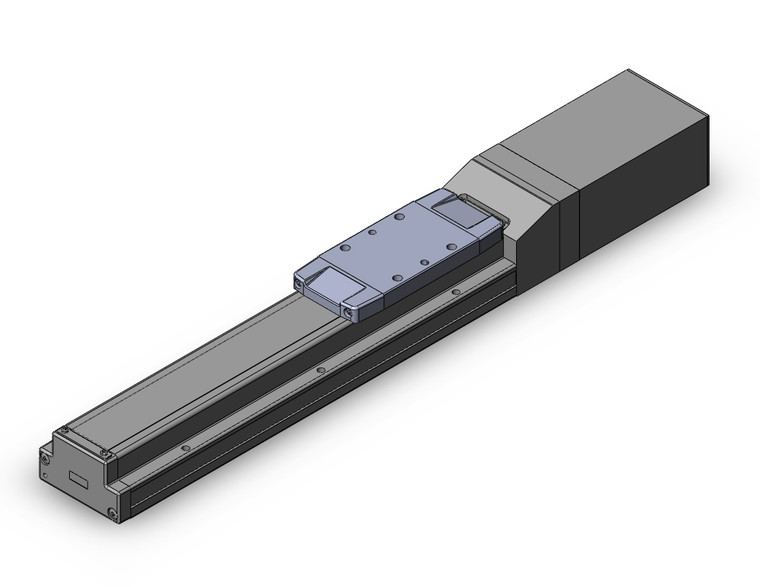

SMC LEFS40B-250B-R3C918 Ball Screw Drive Actuator

SMC LEFS40B-250B-R3C918 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC) Applicable To The JXC Series

SMC
SKU:
LEFS40B-250B-R3C918
Availability:
Factory Stock
$2,205.00
Condition:
New
Current Stock:
Description
The SMC LEFS40B-250B-R3C918 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type ball screw drive step motor operates on a 24 VDC servo, making it ideal for applications requiring accurate positioning and smooth motion control. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it ensures reliable performance in demanding environments. This actuator is compatible with a range of controllers, including the JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. It features a high output motor available in 100/200/400 W options, enhancing its high-speed transfer capabilities and allowing for rapid acceleration and deceleration up to 20000mm/S². For applications requiring high precision, the LEFS Series offers a high precision type with positioning repeatability of ±0.01 mm. Additionally, it meets clean specifications compliant with ISO Class 4 (ISO14644-1) for the 11-LEFS model, making it suitable for cleanroom environments. The actuator is also compatible with various drivers, including the LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models being discontinued. Whether for industrial automation, robotics, or other precision-driven applications, the SMC LEFS40B-250B-R3C918 delivers exceptional performance and reliability.
Additional Information
Accuracy:
Basic Style
Size:
40
Motor Mounting Position:
In-line
Motor Type:
Step Motor (Servo 24 VDC)
Lead:
Size16:5mm,Size25:6mm,Size32:8mm,Size40:10mm
Stroke:
Stroke 250 mm
Motor Option:
With Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Actuator Cable Type/Length:
Robotic Cable 3 m
Communication Protocol:
EtherNet/IP
Number Of Axes/Special Specification:
Number Of Axis:For Single Axis?Specification:Standard
Mounting:
DIN Rail Mounting
Communication Plug Connector I/O Cable:
Without Controller Or Without Plug Connector
