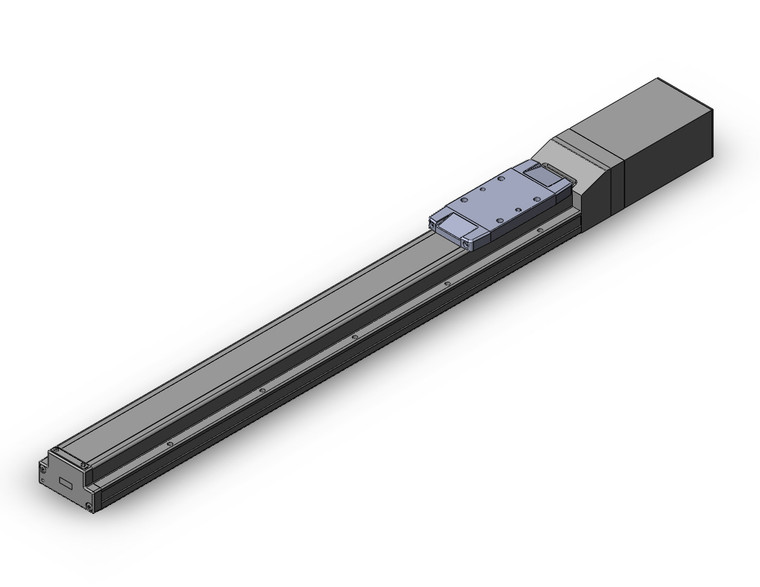

SMC LEFS40B-600B-R3 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

The SMC LEFS40B-600B-R3 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and is powered by a step motor with a servo capability at 24 VDC. It is engineered to handle a maximum workload of 65 kg with exceptional positioning repeatability of ±0.02 mm, ensuring precise and reliable operations. This actuator is compliant with ISO Class 4 clean specifications, making it suitable for environments requiring stringent cleanliness standards. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, and others, providing flexibility in integration and control. For applications demanding high output, the LEFS Series offers an AC Servo Motor option with power ratings of 100/200/400 W. This variant enhances high-speed transfer capabilities and supports high acceleration and deceleration rates of up to 20000mm/S². The pulse input type and internal absolute encoder (available for the LECSB/C/S models) further enhance its precision, achieving a positioning repeatability of ±0.01 mm for high precision types. Compatible drivers for the AC Servo Motor include LECSA, LECSB(-T), LECSC(-T), and others, ensuring seamless operation and control. Whether for industrial automation or precision manufacturing, the SMC LEFS40B-600B-R3 offers a robust solution for your actuator needs.
