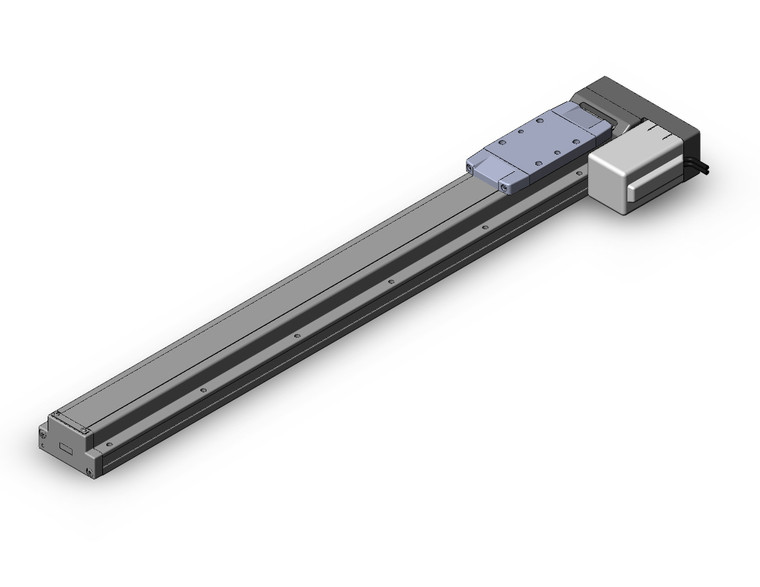

SMC LEFS40LA-650-R5C918 Ball Screw Drive Actuator

SMC LEFS40LA-650-R5C918 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC) Applicable To The JXC Series

SMC
SKU:
LEFS40LA-650-R5C918
Availability:
Factory Stock
$2,220.00
Condition:
New
Current Stock:
Description
The SMC LEFS40LA-650-R5C918 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive step motor with a servo 24 VDC, making it ideal for applications requiring accurate positioning and smooth operation. It is compatible with the JXC Series controllers, ensuring seamless integration into your automation systems. Key features include a maximum work load capacity of 65 kg and exceptional positioning repeatability of ±0.02 mm, ensuring reliable and consistent performance. The actuator meets ISO Class 4 clean specifications, making it suitable for environments with stringent cleanliness requirements. The LEFS Series also offers a high output motor with options of 100/200/400 W, enhancing its high-speed transfer capabilities. It supports high acceleration and deceleration rates of up to 20000 mm/s², making it perfect for dynamic applications. The actuator is equipped with an internal absolute encoder for precise control and positioning, with a high precision type offering repeatability of ±0.01 mm. Compatible with a range of drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, the LEFS40LA-650-R5C918 provides flexibility and adaptability for various industrial applications. Whether you need a reliable solution for automation, robotics, or any other precision-driven task, this electric actuator delivers exceptional performance and durability.
Additional Information
Accuracy:
Basic Style
Size:
40
Motor Mounting Position:
Left Side Parallel
Motor Type:
Step Motor (Servo 24 VDC)
Lead:
Size16:10mm,Size25:12mm,Size32:16mm,Size40:20mm
Stroke:
Stroke 650 mm
Motor Option:
Without Option
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Actuator Cable Type/Length:
Robotic Cable 5 m
Communication Protocol:
EtherNet/IP
Number Of Axes/Special Specification:
Number Of Axis:For Single Axis?Specification:Standard
Mounting:
DIN Rail Mounting
Communication Plug Connector I/O Cable:
Without Controller Or Without Plug Connector
