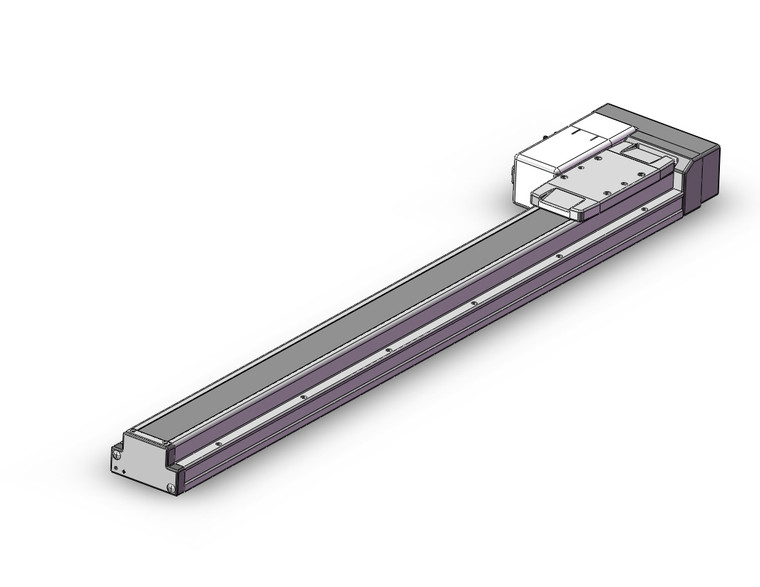

SMC LEFS40RA-700B-S5 Ball Screw Drive Actuator

SMC LEFS40RA-700B-S5 LEFS Series Electric Actuator/Slider Type Ball Screw Drive Step Motor (Servo 24 VDC)/Servo Motor (24 VDC)

SMC
SKU:
LEFS40RA-700B-S5
Availability:
Factory Stock
$1,965.00
Condition:
New
Current Stock:
Description
The SMC LEFS40RA-700B-S5 is a versatile electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and is powered by a step motor (Servo 24 VDC) or a servo motor (24 VDC), making it suitable for a wide range of applications. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it ensures reliable performance in demanding environments. The actuator complies with ISO Class 4 clean specifications, making it ideal for cleanroom applications (11-LEFS only). The LEFS Series is compatible with a variety of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. For those requiring high output, the AC Servo Motor version offers 100/200/400 W options, improved high-speed transfer ability, and high acceleration/deceleration capabilities of up to 20000mm/S². The pulse input type and internal absolute encoder (for the LECSB/C/S) enhance precision, with positioning repeatability of ±0.01 mm for high precision types. Compatible drivers for the LEFS Series include LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, and LECY, with some models also discontinued. This actuator is engineered for high performance and adaptability, making it a valuable component in automation and industrial applications.
Additional Information
Accuracy:
Basic
Size:
40
Motor Mounting Position:
Right Side Parallel
Motor Type:
Step Motor (Servo 24 VDC)
Lead:
Size16: 10 mm, Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
Stroke:
Stroke 700 mm
Motor Option:
With Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Actuator Cable Type:
Standard Cable
Actuator Cable Length:
5 m
Controller Type:
Without Controller
I/O Cable Length, Communication Plug:
Without Cable, Without Communication Plug Connector
Controller Mounting:
Screw Mounting
