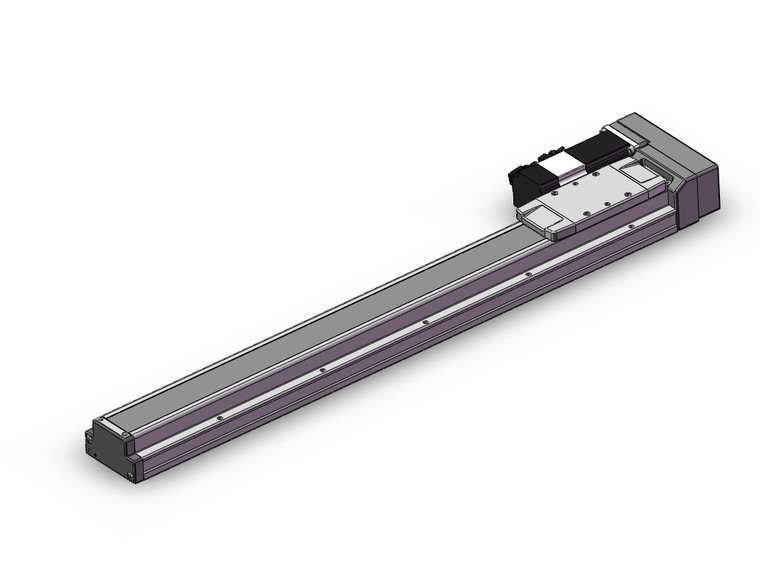

SMC LEFS40RS8B-600B-S5 Ball Screw Drive Actuator

SMC LEFS40RS8B-600B-S5 LEFS Series Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor

SMC
SKU:
LEFS40RS8B-600B-S5
Availability:
Factory Stock
$2,820.00
Condition:
New
Current Stock:
Description
The SMC LEFS40RS8B-600B-S5 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive and is powered by an AC servo motor, making it ideal for applications requiring high-speed transfer and precise positioning. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it ensures reliable and accurate operation. The actuator complies with ISO Class 4 clean specifications, making it suitable for cleanroom environments. It is compatible with a range of controllers, including JXC51, JXC61, and others, providing flexibility in integration. The high output motor options (100/200/400 W) and high acceleration/deceleration capabilities (up to 20000mm/S²) further enhance its performance. Additionally, the actuator includes an internal absolute encoder for improved precision, with a high precision type offering positioning repeatability of ±0.01 mm. Compatible drivers include LECSA, LECSB(-T), and others, ensuring seamless operation and control.
Additional Information
Accuracy:
Basic
Size:
40
Motor Mounting Position:
Right Side Parallel
Motor Type:
AC Servo Motor(Absolute Encoder), Output 400W, Actuator Size 40 mm
Lead:
Size25: 6 mm, Size32: 8 mm, Size40: 10 mm
Stroke:
Stroke 600 mm
Motor Option:
With Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Cable Type:
Standard Cable
Cable Length:
5 m
Driver Type:
Without Driver
I/O Cable Length:
Without Cable
