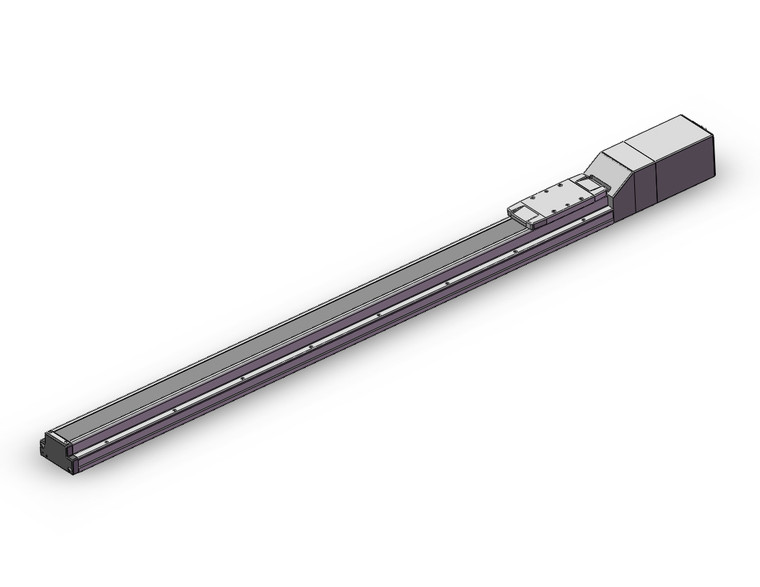

SMC LEFS40S8A-1000-RAB2 Ball Screw Drive Actuator

SMC LEFS40S8A-1000-RAB2 LEFS Series Electric Actuator/Slider Type Ball Screw Drive AC Servo Motor

SMC
SKU:
LEFS40S8A-1000-RAB2
Availability:
Factory Stock
$3,940.00
Condition:
New
Current Stock:
Description
The SMC LEFS40S8A-1000-RAB2 is a high-performance electric actuator from the LEFS Series, designed for precision and efficiency. This slider type actuator features a ball screw drive powered by an AC servo motor, making it ideal for applications requiring high-speed and accurate positioning. With a maximum workload capacity of 65 kg and positioning repeatability of ±0.02 mm, it ensures reliable performance in demanding environments. The actuator is equipped with a high output motor available in 100/200/400 W options, enhancing its high-speed transfer capabilities and allowing for rapid acceleration and deceleration up to 20000mm/S². It includes an internal absolute encoder for precise control and is compatible with a range of controllers and drivers, including JXC51, JXC61, and LECSA, among others. Additionally, the LEFS40S8A-1000-RAB2 complies with ISO Class 4 clean specifications, making it suitable for cleanroom applications. Whether for industrial automation or precision manufacturing, this actuator delivers exceptional performance and reliability.
Additional Information
Accuracy:
Basic
Size:
40
Motor Mounting Position:
In-line
Motor Type:
AC Servo Motor(Absolute Encoder), Output 400W, Actuator Size 40 mm
Lead:
Size25: 12 mm, Size32: 16 mm, Size40: 20 mm
Stroke:
Stroke 1000 mm
Motor Option:
Without Lock
Auto Switch Mounting Bracket:
None
Grease Application (Seal Band Part):
With
Positioning Pin Hole:
Housing B Bottom
Cable Type:
Robotic Cable(Flexible Cable)
Cable Length:
10 m
Driver Type:
LECSB2-T, Power Supply Voltage 200V To 240V
I/O Cable Length:
Without Cable
