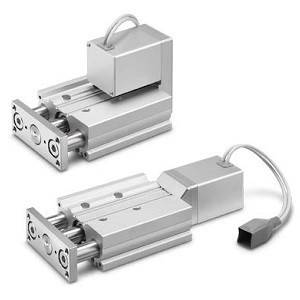

SMC LEG32MGB-100W LEG Series High Performance Electric Actuator Battery-less Absolute (Step Motor 24 VDC) High Performance High Rigidity Guide Rod Type

SMC LEG32MGB-100W LEG Series High Performance Electric Actuator Battery-less Absolute (Step Motor 24 VDC) High Performance High Rigidity Guide Rod Type

SMC
SKU:
LEG32MGB-100W
Availability:
Factory Stock
$2,294.16
Condition:
New
Current Stock:
Description

LEG Series High Performance Electric Actuator Battery-less Absolute (Step Motor 24 VDC) High Performance High Rigidity Guide Rod Type

  • Max. weight of transferred object: 75 kg (Size 25), 100 kg (Size 32), 150 kg (Size 40);
  • High performance step motor controller; (Max. acceleration/deceleration: 5000 mm/s2);
  • With internal battery-less absolute encoder;
  • Auto switches are mountable. (In-line only); For checking the limit and the intermediate signal;
  • Fully integrated the compact guide unit for improved lateral load capacity;
  • Compatible controllers?JXC5H, JXC6H, JXCEH, JXC9H, JXCPH
    • Additional Information
    Size:
    32
    Bearing Type:
    Slide Bearing
    Motor Mounting Position:
    Top Mounting
    Motor Type:
    High Performance Type Battery-less Absolute (Step Motor 24 VDC)
    Lead:
    Size25: 6 mm, Size32, 40: 8 mm
    Stroke:
    Stroke 100 mm
    Motor Option:
    With Lock And Cover
    Actuator Cable Type/Length:
    Without Cable
    Communication Protocol Input/Output:
    Without Controller
    Number Of Axes/Special Specification:
    Without Controller
    Controller Mounting:
    Without Controller
    Communication Plug Connector I/O Cable:
    Without Controller/ Without Plug Connector
