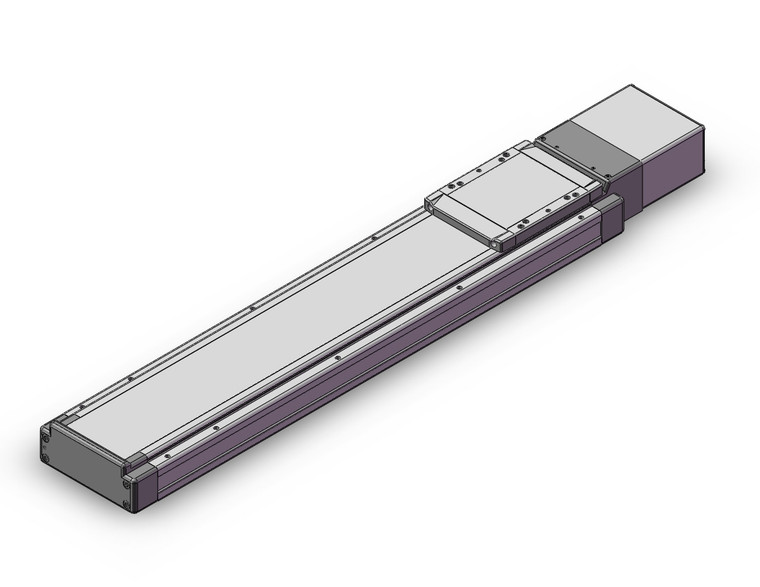

SMC LEJS63S7B-600-S5C2H LEJS-AC Series Electric Actuator/High Rigidity Slider Type Ball Screw Drive AC Servo Motor
SMC
$5,835.00
Introducing the SMC LEJS63S7B-600-S5C2H, a cutting-edge electric actuator from the LEJS-AC Series, designed for high rigidity and precision. This advanced actuator features a low-profile, low center of gravity design, reducing the height dimension by approximately 36% (32 mm). It boasts an impressive maximum work load capacity of 85 kg and offers exceptional positioning repeatability of ±0.02 mm, ensuring precise and reliable performance. With a maximum acceleration/deceleration rate of 20000 mm/S², this actuator is engineered for high-speed applications. The clean specification complies with ISO Class 4 (Class 10) standards, making it suitable for environments requiring stringent cleanliness. Compatible with a range of drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and more, this actuator is versatile and adaptable to various industrial needs. Note that some compatible drivers have been discontinued, such as LECSB-S, LECSC-S, and LECSS-S. Elevate your automation solutions with the SMC LEJS63S7B-600-S5C2H electric actuator, where precision meets performance.
- Accuracy:
- Basic
- Size:
- 63
- Motor Type:
- AC servo motor(Absolute encoder), Output 200W, Actuator size 63 mm
- Lead:
- Size40:8mm, Size63:10 mm
- Stroke:
- Stroke 600 mm
- Motor Option:
- Without Lock
- Cable Type:
- Standard Cable
- Cable Length:
- 5 m
- Driver Type:
- LECSC2-T, Power Supply Voltage 200V To 230V
- I/O Cable Length:
- Without Cable (Connector Only)
