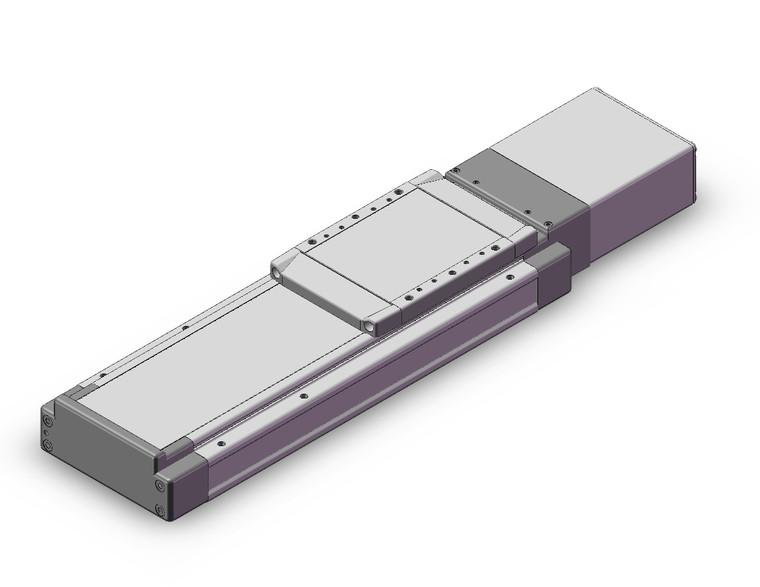

SMC LEJSH40S6B-200-S2B1H LEJS-AC Series Electric Actuator/High Rigidity Slider Type Ball Screw Drive AC Servo Motor
SMC
$4,415.00
The SMC LEJSH40S6B-200-S2B1H is a high-performance electric actuator from the LEJS-AC Series, designed with a high rigidity slider type ball screw drive and powered by an AC servo motor. This actuator boasts a low-profile design with a reduced height dimension by approximately 36%, enhancing its stability with a lower center of gravity. It can handle a maximum workload of 85 kg, ensuring robust performance for demanding applications. With a positioning repeatability of ±0.02 mm, it offers precise and reliable operation. The actuator supports a maximum acceleration and deceleration of 20000 mm/S², making it suitable for high-speed applications. Additionally, it meets clean specifications compliant with ISO Class 4 (Class 10) standards, specifically for the 11-LEJS model. The actuator is compatible with a range of drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and several discontinued models, providing flexibility in integration and operation.
- Accuracy:
- High Precision Type
- Size:
- 40
- Motor Type:
- AC servo motor(Absolute encoder), Output 100W, Actuator size 40 mm
- Lead:
- Size40:8mm, Size63:10 mm
- Stroke:
- Stroke 200 mm
- Motor Option:
- Without Lock
- Cable Type:
- Standard Cable
- Cable Length:
- 2 m
- Driver Type:
- LECSB1, Power Supply Voltage 100V To 120V(Manufacture discontinued)
- I/O Cable Length:
- Without Cable (Connector Only)
