SMC LEKFS40REH-300B-R5C918 LEKFS Series Electric Actuators/High Rigidity And High Precision Slider Type Battery-less Absolute Encoder Motor (Step Motor 24 VDC) Applicable To The JXC Series

SMC LEKFS40REH-300B-R5C918 LEKFS Series Electric Actuators/High Rigidity And High Precision Slider Type Battery-less Absolute Encoder Motor (Step Motor 24 VDC) Applicable To The JXC Series

SMC
SKU:
LEKFS40REH-300B-R5C918
$2,825.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

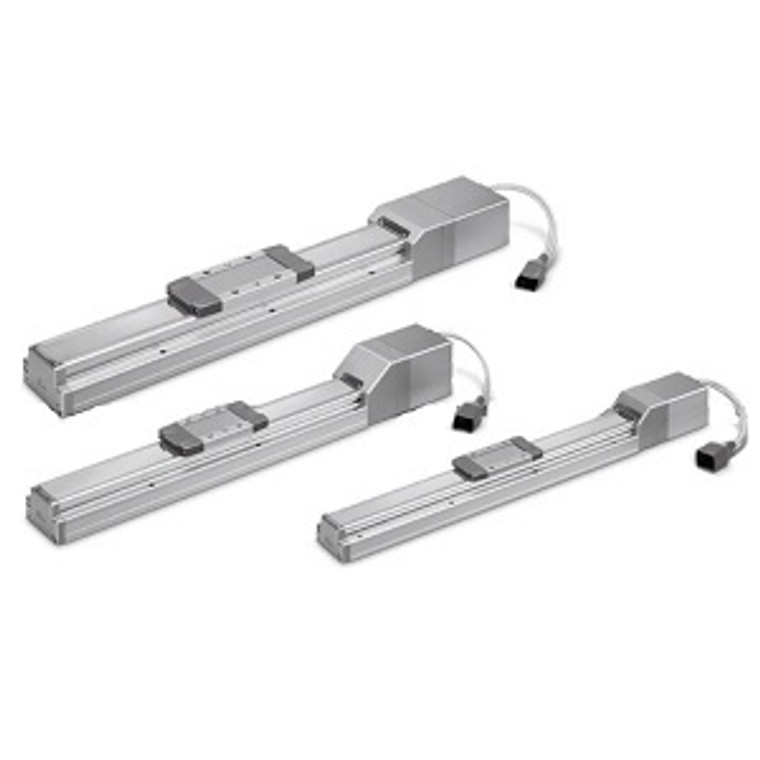

LEKFS Series Electric Actuators/High Rigidity And High Precision Slider Type Battery-less Absolute Encoder Motor (Step Motor 24 VDC) Applicable To The JXC Series

  • An AC servo motor type has been added. [New];
  • Size 16 has been added to the battery-less absolute type. [New];
  • Circular arc grooves allow for high rigidity and high precision.;
  • Moment resistance improved by up to 61%;
  • Table displacement reduced by up to 50%;
  • With internal battery-less absolute encoder; Restart from the last stop position is possible after recovery of the power supply.; Reduced maintenance (No need to manage or replace batteries);
  • Positioning repeatability: ±0.01 mm
    • Additional Information
    Size:
    40
    Motor Mounting Position:
    Right Side Parallel
    Motor Type:
    Battery-less (Step Motor 24 VDC)
    Lead:
    LEKFS16:-?LEKFS25:20 mm?LEKFS32:24 mm?LEKFS40:30 mm
    Stroke:
    Stroke 300 mm
    Motor Option:
    With Lock
    Grease Application (Seal Band Part):
    Yes
    Actuator Cable Type/Length:
    Robotic Cable 5 m
    Communication Protocol:
    EtherNet/IP
    For Single Axis:
    Number Of Axis:For Single Axis?Specification:Standard
    Mounting:
    DIN Rail Mounting
    Communication Plug Connector I/O Cable:
    Without Controller Or Without Accessory
