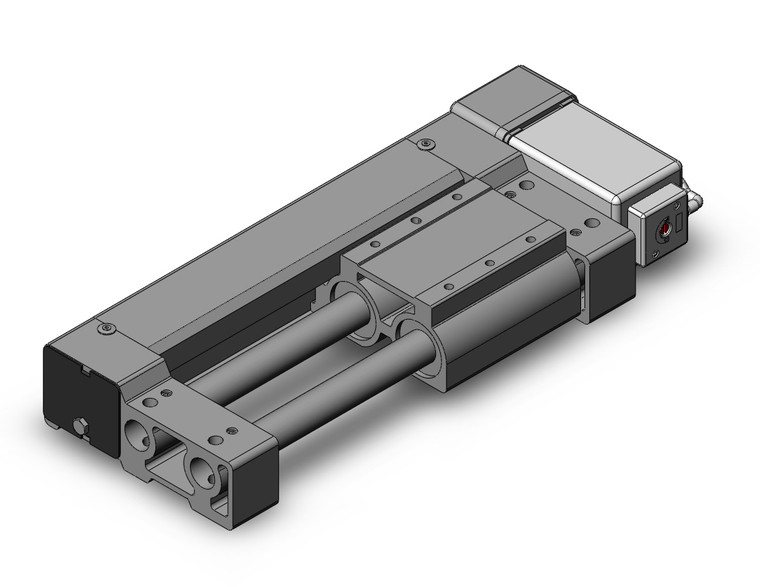

SMC LEL25LT-100-C918 electric actuator guide rod slider, belt electric actuator

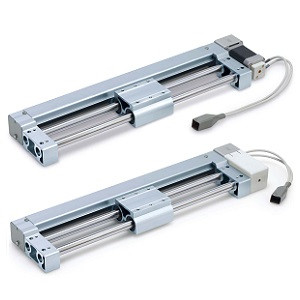

SMC LEL25LT-100-C918 LEL Series Electric Actuator/Guide Rod Slider Belt Drive Step Motor (Servo/24 VDC) Applicable To The JXC Series

SMC
SKU:
LEL25LT-100-C918
Availability:
Contact us to confirm availability and lead times.
$1,015.00
Condition:
New
Current Stock:
Description

SMC LEL25LT-100-C918 - LEL Low-Profile, 25mm, 100mm

The SMC LEL25LT-100-C918 - low-profile, 25mm, 100mm.

Key Features & Specifications

  • Electric actuation
  • Low-profile
  • Ball screw
  • 24VDC step motor
  • Controller compatible
  • 25mm | 100mm

Typical Applications

Compact positioning.

Manufactured by SMC Corporation.

Additional Information
Size:
25
Bearing Type:
Ball Bushing Bearing
Equivalent Lead:
48 mm
Stroke:
Stroke 100 mm
Motor Option:
Without Option
Switch Rail Option:
Without Option
Actuator Cable Type/Length:
Without Cable
Communication Protocol:
EtherNet/IP
Number Of Axes/Special Specification:
Number Of Axis:For Single Axis Specification:Standard
Mounting:
DIN Rail Mounting
Communication Plug Connector I/O Cable:
Without Controller/ Without Plug Connector
