SMC LEMB25T-800W-S32P3 LEMB Series Electric Actuator/Low Profile Slider Type Basic Type Step Motor (Servo 24 VDC)
SMC
$1,070.00

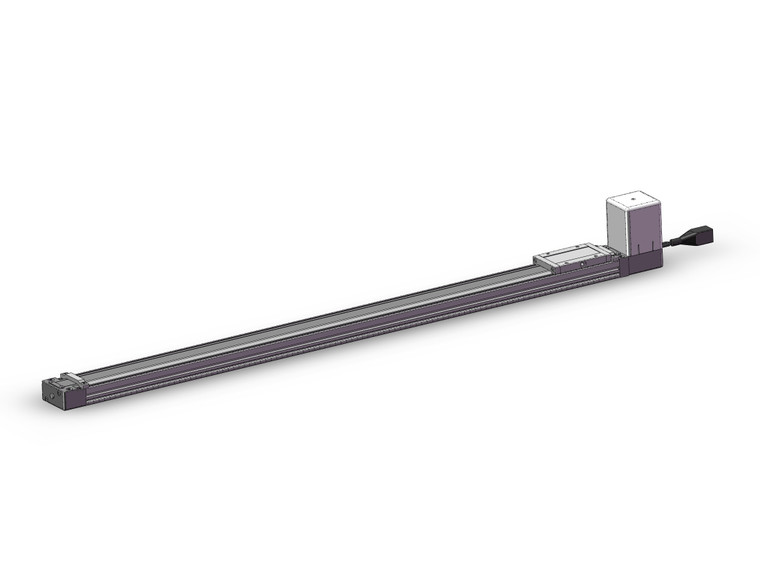

SMC LEMB25T-800W-S32P3 - LEMB Low-Profile Electric Slider, 25mm, 800mm Stroke
The SMC LEMB25T-800W-S32P3 is an electric actuator, 25mm frame, 800mm stroke. Programmable positioning with step or servo motor drive.
Key Features & Specifications
- Electric actuation - programmable position, speed, acceleration, and force
- 24VDC step/servo motor - energy-efficient with precise positioning
- Compact design - minimized height for space-constrained layouts
- Ball screw or belt drive - matched to application requirements
- Controller compatible - works with SMC LECP/JXC controllers
- Clean series compatible
- Size: 25mm | Stroke: 800mm | Electric
Typical Applications
Automated assembly, dispensing, and compact positioning systems.
Manufactured by SMC Corporation.
- Size:
- 25
- Motor Mounting Position:
- Top Mounting
- Lead:
- 48 mm
- Stroke:
- Stroke 800 mm
- Motor Option:
- Without Lock
- Suffix For Stroke Adjusting Unit:
- Both Sides
- Actuator Cable Type:
- Standard Cable
- Actuator Cable Length:
- 3 m
- Controller Type:
- LECP2 Program Less Type (With Stroke Study) PNP
- I/O Cable Length, Communication Plug:
- 3 m
- Controller Mounting:
- Screw Mounting
